1394 FireWire Extender via CAT5: Extend to 76 meters

Exceed the maximum 1394 FireWire length with Cat5e/6 cable.

Also known as: IEEE 1394 firewire extender, firewire to Cat5e/6, exceed maximum 1394 firewire cable length,
Firewire extender, 1394 FireWire extension system

ROHS Compliant Firewire Cat5e/6 Extender

Additional Product Information
View Data Sheet Data Sheet
 ST-C51394-250 Firewire Cat5e/6 Extender up to 250 meters

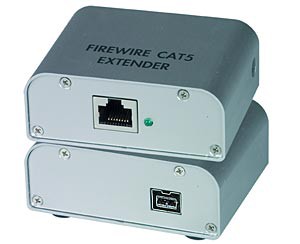

ST-C51394-250 (Front and Back)

Features & Applications

The XTENDEX® 1394 FireWire Extender extends one FireWire device up to 76 meters using CAT6 cable and 46 meters using CAT5e cable. The local and remote units are interconnected via CAT5e/6 cable
  • Works at speeds of 400, 200 and 100 Mbps.
  • Extend a firewire device up to 76 meters.
    • Using Cat6 cable, extend up to 76 meters.
    • Using Cat5e cable, extend up to 46 meters.
  • Supports Plug-n-Play specifications.
  • Pure hardware design, no software or drivers required.
The Firewire Cat5e/6 Extender is the ideal solution for a wide range of applications. Examples include:
  • A/V Broadcasting and Editing (printers, scanners, digital cameras/camcorders, digital audio recorders).
  • Security (Surveillance cameras, webcams, mass storage).
  • Long range IEEE FireWire networking.

Specifications

  • Compatible with computers with 1394 outputs.
  • Full duplex data rate at 100/200/400 Mbps.

Connectors

  • One female IEEE 1394 9-pin connector on each unit.
  • One female RJ45 connector on each unit

Dimensions

  • WxDxH(mm) 76x56x25

Power

  • Supports both bus-power and self-power.
  • Local unit: powered by attached computer through FireWire cable
  • Remote unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power Consumption: 2.7W

Enviromental

  • Operating Temperature: 0°C to 50°C (32°F to 122°F).

Regulatory Approvals

  • CE, FCC, RoHS

Cables

  • Supports Cat5e and Cat6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
  • Use the included inline coupler to enable proper communication between local and remote units.

Package Includes

  • 1394 FireWire Extender – local and remote unit.
  • User manual.
  • Power adapter.
  • 6-inch male 9-pin 1394b bilingual to male 6-pin 1394a cable.
  • Male-to-female CAT5e RJ45 inline coupler.

Warranty

  • Two years

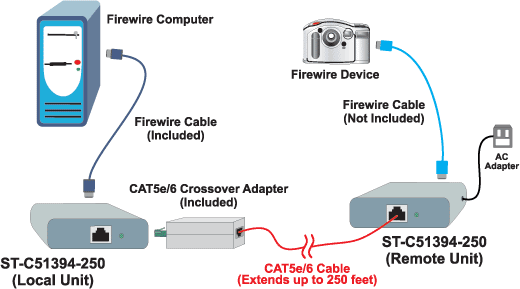

Firewire Cat5e/6 Extender Application Drawing
