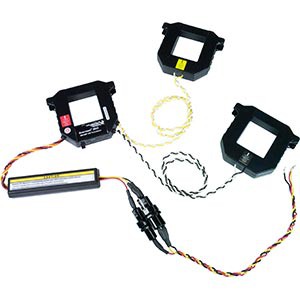

3-Phase Power Transducer, 208/240 VAC, 800 Amps, for Unbalanced lines

Application Notes

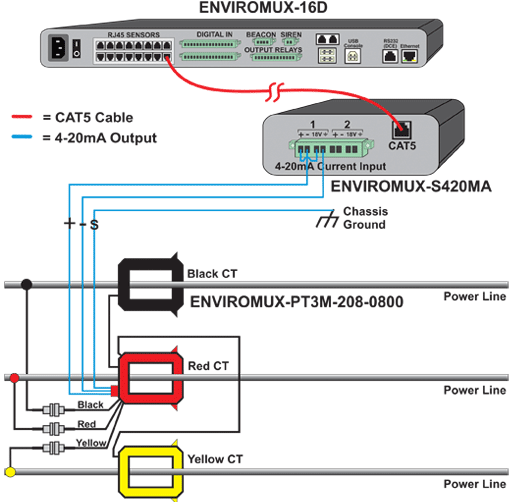

• 3-Phase Power Transducer Application


  The ENVIROMUX 3-Phase Power Transducer monitors and reports kW real power of any 3 phase circuit, such as the power a building consumes. Connect the 4-20 mA output lead to the ENVIROMUX-S420MA 4-20 mA Sensor Converter with the ISA Type 2 connection method.

  ISA Type 2 Connection:

  • Connect the Positive (+) lead from the Power Transducer to the Negative (-) terminal of either group 1 or group 2 of the terminal block on the Sensor Converter.
  • Connect the Negative (-) lead to the Earth Ground terminal in the same group.
  • Connect the Shield (S) lead to the chassis ground.
  • Connect one end of a short wire to the Positive (+) terminal, and connect the other end of the wire to the 18V terminal.

  Note: For the Single CT model on a balanced load, multiply output by the number of voltage leads connected to conductors (usually 2 or 3) for proper kW indication.
