4K 18Gbps HDMI Video Splitter: 4-Port

NTI Part #: VOPEX-4K18GB-4

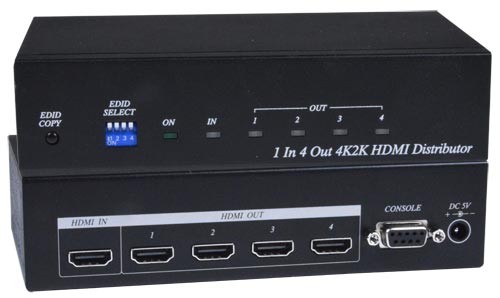

VOPEX-4K18GB-4 (Front & Back)
VOPEX-4K18GB-4 (Front & Back)
NTI Part #: VOPEX-4K18GB-4
The VOPEX® 4K 18Gbps HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays.

Overview

The VOPEX® 4K 18Gbps HDMI Splitter simultaneously displays the same Ultra-HD 4Kx2K 60Hz 4:4:4 image from one 18Gbps HDMI video source to four displays.

  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
  • HDMI features supported:
    • HDMI 2.0
    • RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
    • Dolby TrueHD, LPCM 7.1, and DTS-HD Master Audio
    • Up to 48-bit Deep Color
    • Bandwidth up to 600 MHz (18Gbps)
    • 3D
    • HDR
  • HDCP 2.2 compliant.
  • Built-in EDID learning for the support of any HDMI display device.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple displays is needed.
