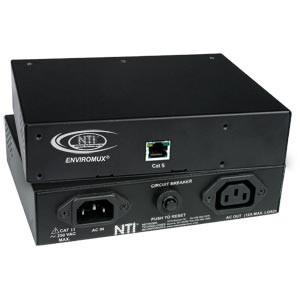

AC power monitor with relay for ENVIROMUX-SEMS-16, 12A

AC power monitor with relay for ENVIROMUX-SEMS-16, 12A

NTI Part #: ENVIROMUX-ACLM-P12

Qty:

AC Power Monitor with Relay. Load rating: 12 A rated load, 15 A maximum, 110 volts. Reports AC Voltage, Frequency, Power, and Current to the ENVIROMUX-SEMS-16.

Overview

Reports AC Voltage, Frequency, Power, and Current.
- Monitors Power from one AC inlet to one AC outlet, between 50~250VAC and 47~63Hz.
- Monitors the number of swells, sags, and spikes.
  - Monitors swell and sag duration of 0.1 second to 1 minute.
Includes Relay with configurable disconnect settings: threshold reboot, or manual reboot.
Outlet Max load rating (continuous):
- ENVIROMUX-ACLM-P12 (US/Canada): 12A rated load, 15A maximum.
Capable of measuring current surges from 300 mA to 20A.
User defined minimum and maximum voltage and power thresholds.
Capable of detecting user selected spike events with a peak greater than 50V, 250V, 500V, or 1KV.
Supports CAT5/5e/6 cable up to 1,000 ft. (305 m).
Regulatory approvals: CE, RoHS
