Extend HDMI LCD Plasma Display up to 46 meters

CAT6, Extend Digital Video, Audio balun

HDMI Extender via One CAT6: Extend 1080p up to 46 meters

Extend an HDMI LCD display monitor up to 46 meters away from the source.

Also known as: HDMI extender, Media center extender, Set-top box extender,
cat6 HDMI monitor extender,remote digital HDMI monitor, HDMI transmitter/receiver,
high definition extender, extend video, balun.

Data Sheet (PDF)

HDMI Extender - Extend signal up to 46 meters

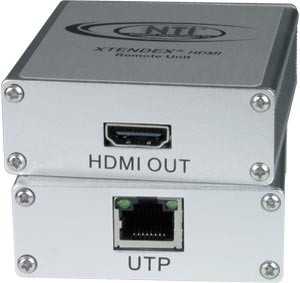

XTENDEX^®ST-C5HDMI-150 (Remote and Local Unit)

The XTENDEX^®HDMI Extender transmits digital video and audio signals up to 46 meters using one CAT6 cable. Each video extender consists of a local transmitter that connects to an HDMI source (Blu-Ray player, satellite receiver, etc.), and a remote receiver that connects to an HDMI display.

Optional daisy-chain receivers allow you to extend one video source to multiple displays and to reach longer distances. The daisy-chain receivers are available in one-output daisy-chain and three-output daisy-chain options.

Ideal solution for digital signage applications.
Transmits an uncompressed HDMI signal over one CAT6 cable.

Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200.
Compliant with HDMI 1.2 and HDCP 1.1 standards.
Supports the DDC2B protocol.
Only one power supply is necessary to power both the local and remote units.
Supports embedded digital audio through HDMI compatible TVs or audio receivers.
Auto gain, auto skew, and auto EQ for plug-and-play setup and zero maintenance.

Local Unit (Transmitter)

One female HDMI-A port for source connection.
One female RJ45 port for sending high definition video/audio signals and DDC signal.
Signal type: HDMI 1.2, HDCP 1.1 compliant.

Remote Unit (Receiver)

One female HDMI-A port for HDTV or computer display.
One female RJ45 port for receiving high definition video/audio signals and DDC signal.
Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200.
Refer to the resolution chart below for resolutions at different lengths.

Optional One-Output Daisy-Chain Remote Unit (Receiver)

Enables a daisy chain of five receivers at 1080p / eight receivers at 1080i/720p.
One female HDMI-A port for HDTV or computer display.
One female RJ45 port for receiving high definition video/audio signals and DDC signal.
One female RJ45 port for sending high definition video/audio signals and DDC signal.
Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200.
Only every third receiver in daisy-chain needs power supply.

Optional Three-Output Daisy-Chain Remote Unit (Receiver)

Enables a daisy chain of five receivers at 1080p / eight receivers at 1080i/720p.
Each receiver supports three displays for a total of fifteen displays at 1080p and 24 displays at 1080i.
Three female HDMI-A ports for HDTVs or computer displays.
One female RJ45 port for receiving high definition video/audio signals and DDC signal.
One female RJ45 port for sending high definition video/audio signals and DDC signal.
Supports HDTV resolutions up to 1080p and computer resolutions up to 1920x1200.
Only every third receiver in daisy-chain needs power supply.

HDMI Extender

Connect an HDMI source such as a set-top box to a HDTV display up to 46 meters away.

Power

Local unit: 110 or 220 VAC at 50 or 60 Hz via AC adapter (included).
Remote unit: powered from local unit via CAT6 cable.
Power Consumption: Local unit: 6W; Remote unit: powered from local unit.

Cables

Use HDMI-xx-MM cable to connect an HDMI source or display.
CAT6 UTP solid 550 MHz or better cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors is recommended for 1080p applications (not included).
- Extension distances will vary with the resolution and quality of the cable used.
- Stranded cables not recommended for use.

Environmental

Operating temperature: -15°C to 50°C (5°F to 122°F).
Storage temperature: -40°C to 85°C (-40°F to 185°F).
Operating Relative Humidity: 0% to 90% non-condensing RH.
Storage Relative Humidity: 0% to 80% non-condensing RH.

Dimensions WxDxH (in)

ST-C5HDMI-150: 63.5x71.1x22.9 (local and remote unit)
ST-C5HDMI-RD-150: 99.1x81.3x35.6
ST-C5HDMI-RD3-150: 127x119.4x35.6

Regulatory Approvals

RoHS, CE, FCC

Warranty

Two years.

HDMI Extender + One-Output Daisy-Chain Receiver

Distances and Resolutions for CAT6 cable
Receiver	Distance (meters)	Maximum Standard Resolution
ST-C5HDMI-150	46	1920x1200
ST-C5HDMI-150	61	1280x1024

Distances and Resolutions for CAT6 cable
Receiver	Distance (meters)	Maximum HDTV Resolution
ST-C5HDMI-150	46	1080p
ST-C5HDMI-150	61	1080i/720p
