EDID Recorder for DVI-EDID-EMLTR-LC

NTI Part #: EDID-REC-VDH

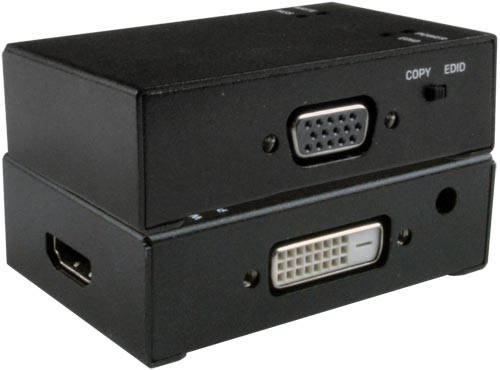

EDID-REC-VDH - EDID Recorder
EDID-REC-VDH - EDID Recorder
NTI Part #: EDID-REC-VDH

Description


The DVI-EDID-EMLTR-LC Low-Cost DVI EDID Emulator simulates the presence of an attached DVI display to a DVI video source. The built-in EDID table stores and reproduces resolutions up to 1920x1200 (WUXGA) and 1080p at 60Hz. When used with EDID-REC-VDH EDID Recorder (sold separately), the EDID of a desired DVI display will be copied and stored to the emulator.



  • Emulates an DVI display (sink device) by providing Hot Plug Detect and EDID to the DVI source device.

  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).

  • Supports Emulation and Learning modes.

    • Emulation mode: provides EDID to the DVI source device from the emulator's internal memory.

      • Supports headless operation - no monitor attached to source.

      • The selectable resolutions are dependent on the computer's graphic card.

      • Only DVI-EDID-EMLTR-LC is necessary for this function.



    • Learning mode requires EDID-REC-VDH EDID Recorder (sold separately): store a display's EDID for later use.



  • Pre-programmed with many standard resolutions with native set to 1920x1200@60Hz.

    • Requires EDID-REC-VDH EDID Recorder (sold separately) to program other resolutions to the emulator.

      • LED indicators provide signal status information.





  • Ideal for resolving signal handshaking problems between a source and a display.

    • Ensures that the EDID is not lost in connections between devices such as switches, splitters, and extenders.




Overview

EDID-REC-VDH Recorder

  • For use with NTI's Low-Cost DVI and VGA EDID Emulators (DVI-EDID-EMLTR-LC and VGA-EDID-EMLTR-LC) to copy and store the EDID of a desired display onto the emulator.
  • LED indicators provide signal status information.
Connectors
  • One female DVI-D connector for DVI-EDID-EMLTR-LC.
  • One female 15-pin HD connector for VGA-EDID-EMLTR-LC.
  • One female HDMI connector - not supported at this time.
Power
  • Input: 110 or 220 VAC at 50 or 60 Hz via AC adapter (included).
  • Output: 5VDC, 2A
Dimensions
  • WxDxH: 1.97x2.9x0.88 in (50x74x22 mm).
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant.
Warranty
  • Two years
