Also known as: Remote Server Environment Monitoring System, monitor computer rooms,
data center thermometer, temperature sensor, humidity sensor, computer room temperature alert.

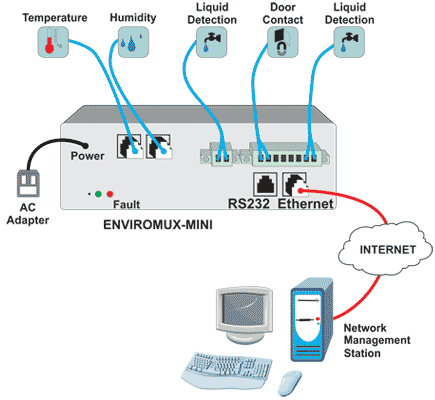

The Mini Server Environment Monitoring System monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), and SMS messages (via external GSM modem).
- Monitor and manage server room environmental conditions over IP.
- Sensors supported:
- 2 temperature/humidity sensors
- 1 liquid detection sensor
- 4 digital inputs sensitive to contact closure
- Alerts are posted in message log, which is accessible through Web user interface.
- The log can be downloaded as a tab-delimited plain text file.
|
- Integrates with various Open Source monitoring packages — Nagios and MRTG.
- Flexible Zero-RU mounting.
- Mounting tabs included.
- Optional DIN mounting available.
- Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
- Optional industrial mini server environment monitoring system for high temperature environments. This industrial system has the ability to operate and monitor in harsh environments at high temperatures up to 167°F (75°C).
|
Temperature/Humidity Inputs
- Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors.
Water Detection Cable Input
- One screw terminal pair for connecting liquid detection sensor.
- Additional water detection sensors can be connected to the dry contact closures.
- Output voltage: +5V DC.
- Current limited to 10mA
- Maximum resistance to close contact: 300K Ohm.
Dry Contact Closures
- Four screw terminal pairs for connecting dry contact devices.
- Potential-free.
- Output voltage: +5 V DC
- Current limited to 10 mA
- Maximum resistance to close contact: 300K Ohm.
Ethernet Port
- One female RJ45 connector with LEDs.
- 10 BaseT Ethernet interface.
RS232 Port
- One female RJ45 connector for controlling a GSM modem.
- Supports 3-wire interface (Tx, Rx and GND)
- Used for flash upgrades (includes DB9F-RJ45F adapter).
- GSM modem supported:Teltonika WirelessCom/G10
|
Protocols
- HTTP, SNMP V1, SMTP, TCP/IP, UDP, DHCP, WAP 2.0
- Compatible with any SNMP management software.
- Operates and configures via an HTTP web page.
- An IP address can be assigned to the ENVIROMUX-MINI automatically by a DHCP server.
- Generates SNMP traps, email alerts, and syslog messages.
- Email alerts can be sent to three addresses.
- Up to four users can access the Web interface simultaneously.
- OIDs for sensor and contact values for ENVIROMUX-MINI.
Dimensions
Environmental
- Operating temperature:
- ENVIROMUX-MINI: 0°C to 38°C (32°F to 100°F).
- ENVIROMUX-MINI-IND: 0°C to 75°C
(32°F to 167°F).
- Storage temperature:
- ENVIROMUX-MINI: -30°C to 60°C
(-20°F to 140°F).
- ENVIROMUX-MINI-IND: -30°C to 85°C
(-20°F to 185°F).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
- ENVIROMUX-MINI: CE, UL, RoHS
- ENVIROMUX-MINI-IND: CE, RoHS
Power
- 110 or 220 VAC at 50 or 60 Hz via AC adapter.
- Use the PWR-48V-5V1A DC-DC power converter to install the ENVIROMUX-MINI in a Telecom environment.
Warranty
 ENVIROMUX-MINI-D with optional DIN rail mounting for industrial applications |
- Configuration can be done over the Internet/LAN via Web page.
Front Panel Interface
- LEDs indicate the following:
- "Fault" (red) lights up if a sensor exceeds a configurable threshold
- "Power" (green) lights up when the device is powered/all clear.
- Configure sensor's thresholds, alarm methods, formats of alerts, and system data log.
- View/edit sensors' current values, thresholds and alert statuses.
- All sensors connected to the ENVIROMUX-MINI can be viewed on one summary page.
- User configurable settings allow sensors to return to normal status when alert condition clears, without manually acknowledging/dismissing the alert.
- View/edit entries stored in the system data log.
- The log can be downloaded as a tab-delimited plain text file.
- Configure IP information (address, subnet mask, default gateway, DNS, etc.), user administrative settings, and data logging settings.
- Up to four users can access the web page at one time.
 |
- View summary page on WAP 2.0 compatible devices (smartphones, PDAs, cell phones, etc.)
- Supports Blackberry Software 4.2 and higher.
- Summary page lists all connected sensors' current values and alert statuses.
|
Open Source Monitoring Integration
Download Firmware
|
Mini Server Environment Monitoring Systems |
| NTI Part # |
Description |
Download a PDF Manual |
| ENVIROMUX-MINI |
Mini Server Environment Monitoring System |
 |
| ENVIROMUX-MINI-IND |
Industrial Mini Server Environment Monitoring System |
|
| ENVIROMUX-MINI-D |
DIN Mounted Mini Server Environment Monitoring System |
|
Sensors |
Temperature Sensor |
Temperature Sensor, Extended Range For use with ENVIROMUX-MINI-IND |
| NTI Part # |
Length (m) |
NTI Part # |
Length (m) |
| ENVIROMUX-T-3 |
0.9 |
ENVIROMUX-T-IND-3 |
0.9 |
| ENVIROMUX-T-7 |
2.1 |
ENVIROMUX-T-IND-7 |
2.1 |
| ENVIROMUX-T-10 |
3 |
ENVIROMUX-T-IND-10 |
3 |
| ENVIROMUX-T-25 |
7.6 |
ENVIROMUX-T-IND-25 |
7.6 |
Temperature/Humidity Combination Sensor |
Humidity Sensor |
| NTI Part # |
Length (m) |
NTI Part # |
Length (m) |
| ENVIROMUX-TRH-3 |
0.9 |
ENVIROMUX-RH-3 |
0.9 |
| ENVIROMUX-TRH-7 |
2.1 |
ENVIROMUX-RH-7 |
2.1 |
| ENVIROMUX-TRH-10 |
3 |
ENVIROMUX-RH-10 |
3 |
| ENVIROMUX-TRH-25 |
7.6 |
ENVIROMUX-RH-25 |
7.6 |
Door Contact Sensor |
Emergency/Panic Button |
| NTI Part # |
Length (m) |
NTI Part # |
Length (m) |
| ENVIROMUX-M-DCS |
NA |
ENVIROMUX-EBS |
NA |
Tamper Switch |
Power Converter |
| NTI Part # |
Length (m) |
NTI Part # |
Length (m) |
| ENVIROMUX-TDS |
NA |
PWR-48V-5V1A |
NA |
Sensor Cables |
Liquid Detection Cable Chart |
| NTI Part # |
Length (m) |
NTI Part # |
x Value |
Length (m) |
y Value |
Length (m) |
| ENVIROMUX-2W-3 |
0.9 |
ENVIROMUX-LDx-y (Select any value of x and y) |
1 |
0.3 |
5 |
1.5 |
| ENVIROMUX-2W-6 |
1.8 |
10 |
3.0 |
10 |
3.0 |
| ENVIROMUX-2W-10 |
3 |
50 |
15.2 |
20 |
6.1 |
| ENVIROMUX-2W-25 |
7.6 |
100 |
30.5 |
50 |
15.2 |
| ENVIROMUX-2W-50 |
15 |
200 |
60.9 |
100 |
30.5 |
| ENVIROMUX-2W-100 |
30 |
400 |
121.9 |
|
|
Smoke Detection Sensor |
600 |
182.8 |
|
|
| ENVIROMUX-SDS-PA |
NA |
800 |
243.8 |
|
|
Air Flow Sensor |
| NTI Part # |
Description |
| ENVIROMUX-AFM-1-5 |
Air Flow Sensor, 1.5 ft |
| ENVIROMUX-AFM-10 |
Air Flow Sensor, 10 ft |
| ENVIROMUX-AFM-50 |
Air Flow Sensor, 50 ft |
| ENVIROMUX-AFM-100 |
Air Flow Sensor, 100 ft |
| ENVIROMUX-AFM-200 |
Air Flow Sensor, 200 ft |
| ENVIROMUX-AFM-400 |
Air Flow Sensor, 400 ft |
| ENVIROMUX-AFM-600 |
Air Flow Sensor, 600 ft |
| ENVIROMUX-AFM-800 |
Air Flow Sensor, 800 ft |
| ENVIROMUX-AFM-1000 |
Air Flow Sensor, 1000 ft |
Power Over Ethernet Adapter |
GSM Modem, Powered |
| NTI Part # |
Length (m) |
NTI Part # |
Length (m) |
| ENVIROMUX-POE |
NA |
ENVIROMUX-GSM-P |
NA |
AC Voltage Detector |
| NTI Part # |
Description |
| ENVIROMUX-ACVD-515M |
AC Voltage Detector with NEMA 5-15 plug (For use with ENVIROMUX-MINI purchased
on or after11/1/2007) |
| ENVIROMUX-ACVD-515 |
AC Voltage Detector with NEMA 5-15 plug
(for use with ENVIROMUX-MINI that was purchased
before11/1/2007) |
| ENVIROMUX-ACVD-C14M |
AC Voltage Detector with IEC C14 socket (For use with ENVIROMUX-MINI purchased
on or after11/1/2007) |
| ENVIROMUX-ACVD-C14 |
AC Voltage Detector with IEC C14 socket
(for use with ENVIROMUX-MINI that was purchased
before11/1/2007) |
