HDMI Over IP Extender: Extend up to 333 feet (101 meters)

NTI Part #: ST-IPHDMI-L-333-Group

The XTENDEX® HDMI Over IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet (101 meters) away using CAT5e/6/7 cable. Each HDMI Over IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display.

Also known as: HDMI extender, Media center extender, cat5 HDMI monitor extender, remote digital HDMI monitor, HDMI transmitter/receiver, high definition extender, extend video, HDMI range extender, HDMI over IP extender

Supported Features

HDMI

ROHS Compliant HDMI Over IP Extender: Extend up to 333 feet (101 meters)
HDMI Over IP Extender: Extend up to 333 feet (101 meters)Digital Signage Product
CE Compliant HDMI Over IP Extender: Extend up to 333 feet (101 meters)
FCC Compliant HDMI Over IP Extender: Extend up to 333 feet (101 meters)

Scroll Down to Request a Quote

The XTENDEX ^® HDMI Over IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet (101 meters) away using CAT5e/6/7 cable. Each HDMI Over IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection, or through VLAN isolation on a managed network switch for a Point-to-Many connection.

Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Ideal solution for digital signage applications.
Broadcast real-time HDMI video/audio to multiple display locations.
Transmits an HDMI signal over one CAT5e/6/7 cable.
Plug-and-Play installation allows receivers to find the transmitter automatically on the same network. (Network configuration may be required for Managed network switch.)
Built in default EDID configuration table.
Easily expandable. Add remote units as you add monitors.
Inexpensive CAT5e/6/7 cable replaces bulky video cables.

Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
- The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains.
- Each VLAN acts as a separate HDMI Over IP Channel on the network.
- Cascade managed switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet (305 meters) away from the source device. Each receiver can be located up to 333 feet (101 meters) from the managed switch.
Use a PC to access the built-in HTTP Interface of the managed network switch to control what signal is being watched at each location.
Built-in scaler function allows different input and output resolutions without having to lower the quality of the HDMI source.
Internal JPEG video compression adapts to available bandwidth if needed.
HDCP compliant.
Compliant with HDMI 1.3 standard.
Full IR control of HDMI source from remote HDTV extension in Point-to-Point connections.

Local Unit

One female HDMI-A port for source connection.
One female 100 Mbps RJ45 port for sending high definition video/audio signals and DDC signal.
One female 3.5 mm port for IR emitter.

Remote Unit

One female HDMI-A port for HDTV or computer display.
One female 100 Mbps RJ45 port for receiving high definition video/audio signals and DDC signal.
Signal type: HDMI 1.3, HDCP compliant.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
Supports Linear PCM and Dolby Digital 5.1 audio through HDMI compatible TVs or audio receivers.
Built-in IR receiver and one female 3.5 mm port for optional IR receiver extension.

Power

Local and remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter.

Cables

Use HDMI-xx-MM cable to connect an HDMI source or display (not included).
Use DVI-HDMI-xx-MM cable to connect a DVI source or display (not included).
Use CAT5e/6/7 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
For IR extension, use 3-foot (0.9-meter) IR emitter IR-EMTR-3 and IR receiver IR-RCVR-3.

Dimensions

WxDxH: 5x4.5x1 in (127x114x25 mm)

Regulatory Approvals

CE, FCC, RoHS

Warranty

Two years.

Diagrams

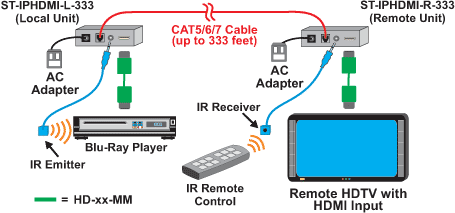

Point-to-Point Configuration

Point-to-Point connection between an HDMI source such as a Blu-Ray Player and a HDTV display up to 333 feet (101 meters) away.
Point-to-Many Configuration

Point-to-Many connection between an HDMI source such as a Blu-Ray Player and multiple HDTV displays up to 333 feet (101 meters) away.

(0)HDMI Over IP Extender via CAT5e/6/7

NTI Part #	Local or Remote	Qty
ST-IPHDMI-L-333	Local
ST-IPHDMI-R-333	Remote

Collapse all Expand all Related Items :

(0)IR Emitter & Receiver

NTI Part #	Name	Qty
IR-EMTR-3	IR Emitter, 3 feet (0.91 meters)
IR-RCVR-3	IR Receiver, 3 feet (0.91 meters)

(0)HDMI Male-Male Cable

NTI Part #	Length	Qty
HDMI-3-MM	3 feet
HDMI-6-MM	6 feet
HDMI-9-MM	9 feet
HDMI-14-MM	14 feet

(0)DVI-D Male to HDMI-A Male Single Link Cable

NTI Part #	Length	Qty
DVI-HDMI-3-MM	3 feet
DVI-HDMI-6-MM	6 feet
DVI-HDMI-10-MM	10 feet
DVI-HDMI-15-MM	15 feet
