Rackmount VGA KVM Drawer with
Real Mouse and VGA USB KVM Switch

Control up to 8 USB computers from 1RU of rack space.

Also known as: rackmount kvm drawer with USB KVM switch, rack mount keyboard drawer, rack mount kvm drawer with USB switch,
console drawer, keyboard monitor drawer, KVM drawers, keyboard LCD drawer, rackmount keyboard drawer.

Rackmount KVM Drawer with USB Switch
zoomClick here to zoom in on image

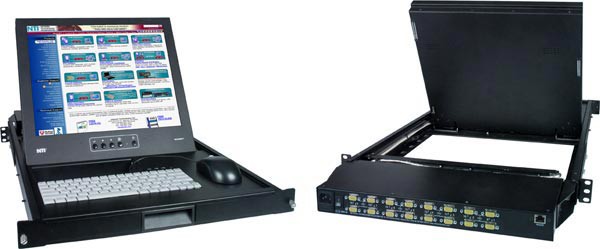

RACKMUX-V17-MP-8USB (Front and Back)		 ROHS compliant KVM drawer USB switch

Designed and Manufactured in the U.S.A.

Features & Applications

The RACKMUX® KVM Drawer with Real Mouse with Built-In USB KVM Switch combines a LCD monitor, keyboard, real mouse with mouse pocket, and a 4 or 8-port USB switch in a space-saving 1RU industrial strength drawer.
  • Available with backward-folding 17" TFT panel active matrix LCD display monitor.
    • 1280x1024 video resolution for 17" monitor.
  • Control up to eight USB-enabled PC, SUN, and MAC computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • High density KVM drawer – fits in 610mm rack.
  • Compact, heavy-duty tactile keyboard.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in multiple languages: English(US), English(UK), German, Italian, French, and Spanish.

Specifications

Power

  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.

Dimensions

  • WxDxH (mm): 483x901.7x44
  • Weight: 17 kg.
  • Drawer is adjustable to various rack depths from 901.7mm deep to 1092.2mm deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.

Regulatory Approvals

  • CE, RoHS

Environmental

  • Operating temperature: 0°C to 40°C (32°F to 104°F).
  • Storage temperature: -20°C to 60°C (-4°F to 140°F).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.

Warranty

  • Two years

Rackmount USB + PS/2 KVM Drawer with Real Mouse Specifications
UNIMUX USB KVM Switch Specifications

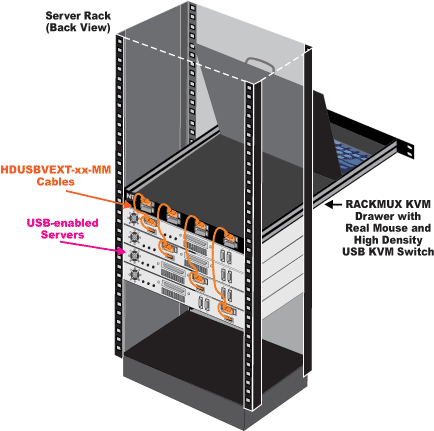

Rackmount KVM Drawer with Real Mouse and USB KVM Switch Example Application

KVM Drawers with USB KVM Switch

NTI Part # Screen Size # of CPUs
RACKMUX-V17-MP-4USB 17" 4
RACKMUX-V17-MP-8USB 17" 8
Compatible All-in-1 VGA +
USB KVM Male to Male Cable
NTI Part # Length (meters)
USBVEXT-3-MM 0.9
USBVEXT-6-MM 1.8
USBVEXT-10-MM 3
USBVEXT-15-MM 4.6
 USB KVM Male to Male Cable
USBVEXT-xx-MM
