Legacy Chemical Detection Sensor

NTI Part #: E-CDSx-y
For detecting the presence of chemical liquid.

Overview

  • For detecting the presence of chemical liquid.
    • Reliably senses acids, bases, and other conductive liquids.
  • Detects liquid depth >0.1" (2.5 mm).
  • Minimum puddle: 0.6" (15 mm) diameter.
  • Chemical resistant – cable functions normally after seven-day exposure to:
    • Fresh deionized water o Tap water o Sulfuric acid (98%)
    • Sulfuric acid (50%)
    • Hydrochloric acid (37%)
    • Sodium hydroxide (10%)
    • Aqua regia
    • Ethylene glycol (60% in DI water)
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1μA.
    • Closed circuit: <300mV @ 10.7mA.
  • RJ45 connector.
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m)
  • Available chemical sensor cable (x) lengths: 1/10/50/100 feet.
    • 100% waterproof
  • Available 2-wire cable (y) lengths: 5/10/20/50/100 feet.
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) – supports up to 1,000 feet (305 meters).
    • Powered by E-SEMS-16U or SERIMUX-S-x.
    • Requires the E-SEMS-16U or SERIMUX-S-x to operate.

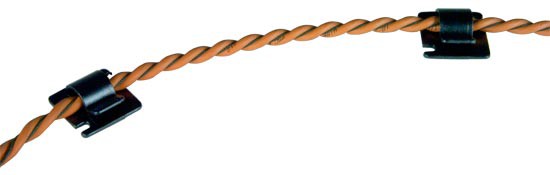

  • Use self-adhesive clips (E-CLP10-LD) to prevent sensor rope cable from shifing after installation
    • E-CLP10-LD includes 10 clips
