ENVIROMUX-STSP-xx

Pipe Temperature Sensor

NTI Part #: ENVIROMUX-STSP-xx

Pipe Temperature Sensor with lengths from 1 ft. to up to 1000 ft. of CAT5E Cable

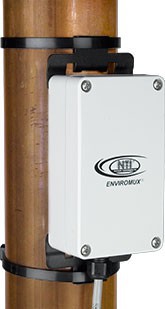

Mount to the outside of a thin walled steel, copper, or aluminum pipe (up to 1/4" wall).
Copper contact transmits surface temperature to thermal sensor.
Weatherproof enclosure designed to IP67 specifications.
Applications from -40 to 185°F (-40 to 85°C).
Accurate to within ±1.0°F (±0.5°C).
Response time: <1 minute for temperature changes of ±2°F.
High resistance to external influences on the cable due to digital output signal.
Re-calibration is not necessary after initial set-up.
MTBF: 1,942,123 hrs.
Self centering mounting bracket available for 1-3" (25 mm) diameter pipe, and 3-6.5" (76 mm) diameter pipe (included).
- Included adjustable cable ties secure mounting bracket to pipe.
Available lengths for attached CAT5e cable: 1/10/50/100/200/400/600/800/1000 feet.
Powered by ENVIROMUX-SEMS-16 or SERIMUX-S-x.
Regulatory approvals: CE, RoHS.
Compatible with ENVIROMUX-SEMS-16 and SERIMUX-S-x only.
