16 port USB KVM switch, rackmounted, OSD
16 port USB KVM switch, rackmounted, OSD

16 port USB KVM switch, rackmounted, OSD

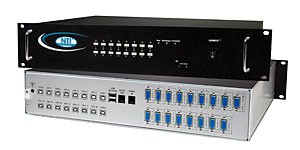

NTI Part #: UNIMUX-USBV-16O
USB KVM Server Switch PC SUN MAC Onscreen Display, Control 16 USB computers with 1 USB keyboard and mouse.

Overview

Control 16 USB computers with 1 USB keyboard and mouse
  • Rackmounted & OSD
  • MAC, PC and SUN supported
  • 1900x1200 video resolution with no degradation

Specifications

UNIMUX-USBV-16O

Hosts
  • Sixteen female 15-pin HD and sixteen female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.
Monitor
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
MTBF
  • 39,250 hrs.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 15 W
  • Use the PWR-48V-5V2A DC-DC power converter to install the UNIMUX-USBV-16 in a Telecom environment.
Devices
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
