Extend an Ultra-HD 8K 4320p 30Hz DisplayPort display up to 984 feet (300 meters) via fiber.

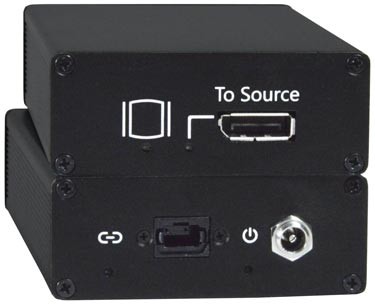

XTENDEX® ST-FODP14-MPO (Remote & Local Unit)
XTENDEX® ST-FODP14-MPO (Remote & Local Unit)

8K DisplayPort 1.4 Extender via One 12-Strand MPO Multimode Fiber Optic Cable

NTI Part #: ST-FODP14-MPO-Group

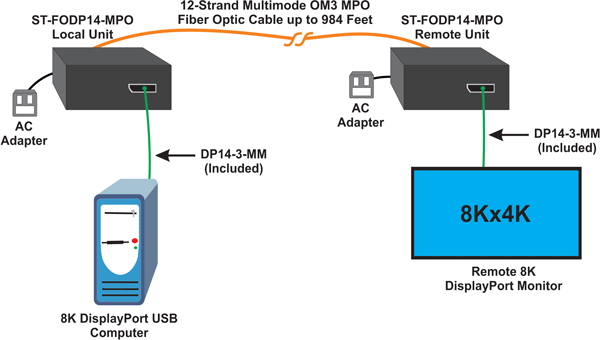

The XTENDEX® 8K DisplayPort 1.4 Extender via MPO Fiber Optic Cable locates an Ultra-HD 8K 4320p 30Hz DisplayPort display away from a DP computer up to 984 feet (300 meters) via a 12-strand female-to-female multimode OM3 MPO fiber optic cable. Each extender consists of a transmitter that connects to a DisplayPort source, and a receiver that connects to a DisplayPort display.
  • Resolutions to Ultra-HD 8K 4320p 30Hz
  • 23.76 Gbps bandwidth
  • DisplayPort 1.4
  • Designed and Manufactured in the U.S.A.

Overview

The XTENDEX® 8K DisplayPort 1.4 Extender via MPO Fiber Optic Cable locates an Ultra-HD 8K 4320p 30Hz DisplayPort display away from a DP computer up to 984 feet (300 meters) via a 12-strand female-to-female multimode OM3 MPO fiber optic cable. Each extender consists of a transmitter that connects to a DisplayPort source, and a receiver that connects to a DisplayPort display.

  • Signal transmission via a 12-strand multimode 50-micron OM3 MPO female-to-female fiber optic cable.
  • Supports Ultra-HD 8K resolutions to 7680x4320 @30Hz YUV 4:2:2, Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YUV 4:4:4, and HDTV resolutions to 1080p @144Hz.
  • DisplayPort features supported:
    • DisplayPort 1.4
    • Multi-Stream Transport (MST)
    • Up to 36-bit Deep Color
    • LPCM
    • YCbCr 4:4:4, YCbCr 4:2:2, and RGB
    • HDR
    • Bandwidth up to 23.76 Gbps
  • HDCP compliant.
  • EDID pass-through for the support of any DisplayPort display device.
  • Cables can be installed in conduit prior to extender installation.
  • Supports Plug-n-Play specifications.
  • Low RFI/EMI for sensitive applications.

(0)DisplayPort to VGA Adapter Cables, Male to Male
(Use with Windows computers only)

NTI Part # Length Qty
DP-VGA-3-MM 3 feet
DP-VGA-6-MM 6 feet
DP-VGA-10-MM 9 feet
DP-VGA-15-MM 15 feet
