4K 10.2Gbps HDMI HDBaseT Extender via CATx Cable with USB and RS232

NTI Part #: ST-C6USB4K-HDBT-Group

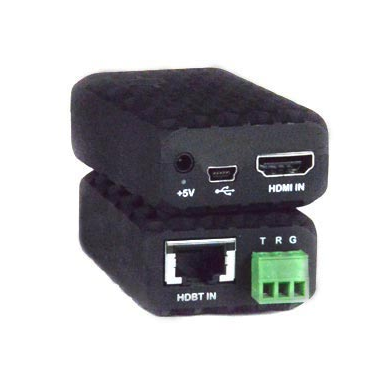

The XTENDEX® 4K HDMI HDBaseT Extender with USB and RS232 transmits uncompressed digital 4Kx2K HDMI signal, USB and RS232 up to 328 feet over a single CATx cable using HDBaseT technology. Each extender consists of a local unit that connects to a computer and a remote unit that connects to a UHD HDMI display and USB 2.0 device.

ROHS Compliant 4K 10.2Gbps HDMI HDBaseT Extender via CATx Cable with USB and RS232
4K 10.2Gbps HDMI HDBaseT Extender via CATx Cable with USB and RS232Digital Signage Product
CE Compliant 4K 10.2Gbps HDMI HDBaseT Extender via CATx Cable with USB and RS232
FCC Compliant 4K 10.2Gbps HDMI HDBaseT Extender via CATx Cable with USB and RS232

Overview

Transmits an uncompressed high speed HDMI signal over one CAT6/6a/7 cable.
Supports Ultra-HD 4Kx2K resolutions to 3840x2160, 2K resolution 2048x1080, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
HDMI features supported:
- x.v.Color, sYCC601 color, Adobe RGB Color and Adobe YCC601 color
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth up to 340 MHz (10.2 Gbps).
- Support for CEC (consumer electronic control) compatible devices.
- 3D
- Lip Sync
HDCP compliant.
Supports the DDC2B protocol.
USB 2.0 port for keyboard, mouse, flash drive, HDD, or touchscreen display.
- Compliant with USB 2.0 (low/full/high speed) standards.
- Use a USB hub to extend multiple USB devices.
Supports full-duplex RS232 up to 115200 baud.
Compact size.
Optional mounting bracket for easy surface/wall mounting.

Specifications

Local Unit

Compatible with a USB computer (PC, SUN and MAC) with Ultra-HD HDMI output.
- Use an HDMI to DVI adapter/cable to connect a DVI source.
  - If a DVI source is used, a DVI monitor must be connected to the remote unit.
Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
One female HDMI connector.
One female USB Type Mini B connector.
3-pin screw terminal for RS232.
One female RJ45 port for sending/receiving UHD video, audio, USB, RS232 and DDC signals.

Remote Unit

One female HDMI connector for display.
- If an HDMI display is used, an HDMI or DVI source can be connected to the local unit.
- Use an HDMI to DVI adapter/cable to connect a DVI display.
  - If a DVI monitor is used, a DVI source must be connected to the local unit.
One female USB Type Mini B connector for connecting USB keyboard, mouse, flash drive, HDD, or touchscreen display.
- Use a USB hub to extend multiple USB devices.
3-pin screw terminal for RS232.
- Support full-duplex RS232 up to 115200 baud.
Supported video resolutions:
- Ultra-HD 4Kx2K resolutions:
  - 3840x2160 at 60Hz, 4:2:0
  - 3840x2160 at 30Hz, 4:4:4
- 2K Cinema (2048x1080 at 60Hz)
- HDTV resolutions to 1080p
- Up to 1920x1200 (WUXGA)

Supports embedded digital audio through HDMI compatible TVs or audio receivers.

Dimensions

WxDxH (in): 1.73x2.87x0.98 (44x73x25mm)

Power

Local and remote unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
- Output: 5VDC, 2A

Environmental

Operating temperature: 32 to 122°F (0 to 50°C).
Storage temperature: -4 to 167°F (-20 to 75°C).
Operating and storage relative humidity: 5 to 95% non-condensing RH.

Regulatory Approvals

CE, FCC, RoHS
TAA compliant.

Warranty

Two years

Max Distance

328 feet (100 meters) over CAT6/6a/7 cable.

Cables

Interface cables between the source/display and the transmitter/receiver are required for proper operation.
- Supports cable lengths to 30 feet.
- Cables longer than 30 feet can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
Use HD-xx-MM cable to connect an HDMI source or display.
Use DVI-HD-xM-MM cable to connect a DVI source or display.
- If a DVI source is used, a DVI monitor must be connected to the remote unit.
Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
Use CAT6/6a/7 solid straight through cables for TIA/EIA 568B wiring terminated with standard RJ45 connectors.
Cables not included.

Application Drawings

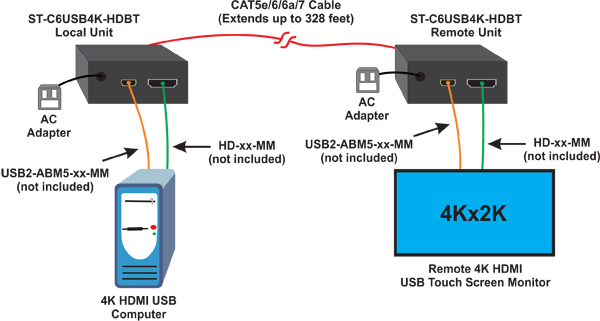

How to extend a 4Kx2K HDMI display, USB 2.0 device and RS232 up to 328 feet away from the source

Downloads

Data Sheet:

4K HDMI Extender over HDBase-T with USB and RS232 176 KB

User Manual:

ST-C6USB4K-HDBT – 4K HDMI Extender over HDBase-T with USB and RS232 User Manual 1.4 MB

(0)HDMI Male-Male Cables

NTI Part #	Length	Qty
HD-3-MM	3 feet
HD-6-MM	6 feet
HD-10-MM	10 feet
HD-15-MM	15 feet
HD-25-MM	25 feet
HD-30-MM	30 feet
