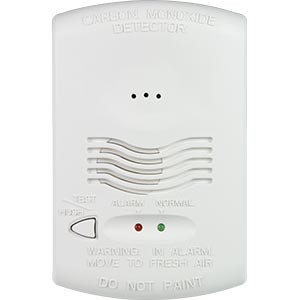

Carbon Monoxide Detector - CO

NTI Part #: E-CMD
Continuous air monitoring. Pre-set alarm points alert at:70 ppm after 60 to 240 minutes. 150 ppm after 10 to 50 minutes. 400 ppm after 4 to 15 minutes.

Overview

  • Continuous air monitoring.
  • Pre-set alarm points alert at:
    • 70 ppm after 60 to 240 minutes
    • 150 ppm after 10 to 50 minutes
    • 400 ppm after 4 to 15 minutes
  • Flush or surface mount.
  • Test functionality of electrochemical CO sensing cell.
  • Connect to RJ45 or digital input sensor ports.
  • Screw terminal
    • To connect to the RJ45 inputs use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the un-terminated end to the sensor screw terminal.
    • Maximum cable length: 1000 ft (305 m).
  • LED indicators for operation status and system test.
  • Current consumption: 40mA @ 12VDC.
  • Powered by E-2D/5D/16D.
  • Regulatory approvals: UL
