DVI Extender via Singlemode or Multimode Fiber Optic Cable: Extend to 4,920 feet (1,500 meters)

NTI Part #: ST-2FODVI-LC-Group

The XTENDEX® DVI Extender via Fiber Optic Cable locates a single link digital DVI display away from a computer up to 4,920 feet (1,500 meters) using singlemode fiber optic cable and 1,640 feet (500 meters) using multimode fiber optic cable. Supports resolutions to 1920x1200.

Also known as: Also known as: DVI Optical Extension, DVI-D extender, DVI digital to multimode/singlemode fiber, optical extender, graphic extension modules, fiber optic digital video extender, balun.

Supported Features

ROHS Compliant DVI Extender via Singlemode or Multimode Fiber Optic Cable: Extend to 4,920 feet (1,500 meters)
DVI Extender via Singlemode or Multimode Fiber Optic Cable: Extend to 4,920 feet (1,500 meters)Digital Signage Product
CE Compliant DVI Extender via Singlemode or Multimode Fiber Optic Cable: Extend to 4,920 feet (1,500 meters)
FCC Compliant DVI Extender via Singlemode or Multimode Fiber Optic Cable: Extend to 4,920 feet (1,500 meters)

Scroll Down to Request a Quote

The XTENDEX® ST-2FODVI-LC DVI Extender via Fiber Optic Cable locates a single link digital DVI display away from a computer up to 4,920 feet (1,500 meters) using singlemode fiber optic cable and 1,640 feet (500 meters) using multimode fiber optic cable. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

Ideal solution for digital signage applications.
Supports computer resolutions to 1920x1200.
Signal transmission via two strand singlemode or multimode LC fiber optic cable – no RF interference.
- Using singlemode cable, extend to 4,920 feet. (1,500 meters)
- Using multimode cable, extend to 1,640 feet. (500 meters)
Small form factor – allowing for easy connection and placement.
Cables can be installed in conduit prior to extender installation.

EDID learning for the support of any DVI display device.
Low RFI/EMI for sensitive applications.
No software to install.

The DVI Optical Extender is the ideal solution for a wide range of applications. Examples include:

Remote DVI display monitoring for medical, military, aerospace, industrial and traffic control applications.
Digital Flat Panel Displays (FPD), Plasma Display Panels (PDP) and projectors in conference rooms and auditoriums.
Kiosks with digital FPDs.
Color LED signboards, FPDs and PDPs for information display at stadiums.

Resolution: up to 1920x1200.
Connectors (for transmitter and receiver): one male DVI-D single link connector and two LC fiber connectors.
Maximum distance: 4,920 feet (1,500 meters) using singlemode cable and 1,640 feet (500 meters) using multimode cable.
Compliant with DDWG DVI standard.
EDID learning for the support of any DVI display device.
Low RFI/EMI.

Environmental

Operating Temperature: 32 to 122°F (0 to 50°C).
Storage Temperature: 14 to 185°F (-10 to 85°C).
Operating and Storage Relative Humidity: 5 to 85% non-condensing RH.

Regulatory Approvals

CE, FCC, RoHS.

Dimensions

WxDxH: 1.5x2.7x0.6 in (38x69x15 mm)

Cables

Use a FIBER-D-LCLC-50-xxM duplex multimode LC 50-micron fiber optic cable to extend the receiver from the transmitter up to 1,640 feet (500 meters) (not included).
Use a duplex singlemode LC 9-micron fiber optic cable to extend the receiver from the transmitter up to 4,920 feet (1,500 meters) (not included).

Power

100 to 240 VAC at 50 or 60 Hz via AC adapter.
Power consumption: 5 W (each – transmitter and receiver).

Warranty

Two years

Diagrams

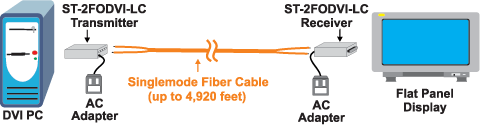

DVI Extender via Singlemode or Multimode Application Drawing

(0)DVI Extender via Fiber Optic Cable

NTI Part #	Supported Features	Qty
ST-2FODVI-LC	DVI

Related Items :

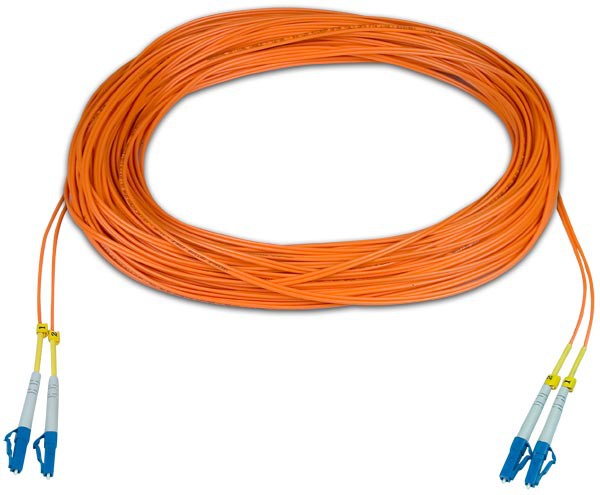

(0)Fiber Optic Cables Duplex Multimode LC 50-micron

NTI Part #	Length	Qty
FIBER-D-LCLC-50-20M	20 meters
FIBER-D-LCLC-50-30M	30 meters
FIBER-D-LCLC-50-40M	40 meters
FIBER-D-LCLC-50-50M	50 meters
FIBER-D-LCLC-50-100M	100 meters
FIBER-D-LCLC-50-300M	300 meters
FIBER-D-LCLC-50-500M	500 meters
