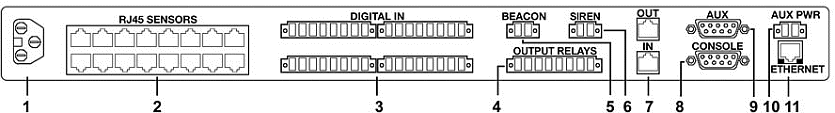

1. Power Port

• Mains power: 110 or 230 VAC at 50 or 60 Hz via IEC connector.
• Connection for Earth Ground.
• Fuse protection.
• Optional dual power (not shown)
  • Mains power: 110 or 230 VAC at 50 or 60 Hz via IEC connector.
  • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source before switching to the battery backup.
• Optional 48 VDC power (not shown).
  • Accepts 36~72VDC (48 VDC nominal).
• Optional 48 VDC dual power (not shown).
  • Accepts 36~72VDC (48 VDC nominal).
  • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source before switching to the battery backup.
• Optional 24 VDC power (not shown).
  • Accepts 20~32VDC (24 VDC nominal).
• Optional 24 VDC dual power (not shown).
  • Accepts 20~32VDC (24 VDC nominal).
  • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source before switching to the battery backup.

2. RJ45 Sensor Ports

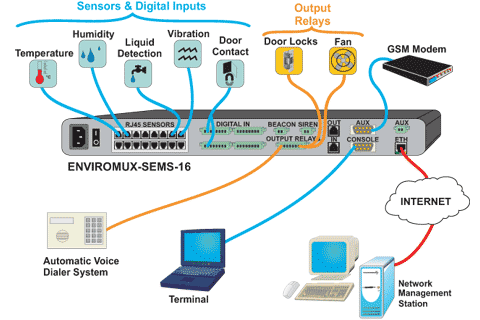

• Sixteen RJ45 modular jacks for connecting NTI temperature, humidity, temperature/humidity, liquid detection, smoke detection, glass break, vibration and motion sensors.

3. Digital Inputs

• Screw terminals.
• Input voltage: 0 V DC to +25 VDC.
• Provides +12 V DC, 50 mA.
• Fuse protection.

4. Output Relays

• Screw terminals.
• Potential-free relay switch contacts.
• Maximum switching load: 0.5A at 100VAC, 1A at 30VDC

5. Beacon Port

• Screw terminals.
• Provides +12 V DC, 180 mA to supply an alarm beacon.
• Fuse protection

6. Siren Port

• Screw terminals.
• Provides +12 V DC, 180 mA to supply a siren.
• Fuse protection

7. Expansion Ports

• RJ45 connectors.
• A maximum of 4 systems can be cascaded to increase the number of sensor ports.
• Uses a single Web interface for all systems connected.

8. Console Port

• One female DB9 RS232 serial port for terminal access.

9. AUX Port

• One male DB9 RS232 serial port for controlling and monitoring external equipment, such as a GSM modem.
  • GSM modems supported: Enfora GSM1218, MultiTech MTCBA-G-F2, Wavecom Fastrack M1306

10. AUX Power Port

• Provides +12 VDC, 150 mA.
• Fuse protection

11. Ethernet Port

• One 10/100 Base-T Ethernet port with RJ45 Ethernet connector.

Protocols

• HTTP, SNMP V1/V2c, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSL
• Operates and configures via HTTP/HTTPS web page, Telnet or RS232 interface.
• Alerts are sent using email, SMS messages and/or SNMP traps when any monitored environmental condition exceeds a user-specified range.
  • Alerts are posted in message log, which is accessible through Web user interface. The log can be downloaded as a tab-delimited plain text file.
  • Sends notifications of alerts to a maximum of 17 email addresses, SNMP addresses and/or cell phone numbers. The users can configure the schedule when they will be alerted, as well as customize the e-mail subject line for each sensor alert.
  • SNMP traps have unique OID's (Object Identifiers) for each sensor.
  • OIDs for sensor and contact values for ENVIROMUX-SEMS-16.

Internal Temperature Sensor

• Applications from 0ºC to 40ºC (32°F to 104°F).
• Accurate to within ±0.75ºC (±1.35°F).

Internal Humidity Sensor

• Applications from 20% to 80% relative humidity at temperatures between 0ºC to 40ºC (32°F to 104°F).
• Accurate to within ±5% relative humidity.

Internal Power Sensor

• Measures mains voltage: 0 to 255 VAC
• Measures battery voltage: 0 to 20 VDC
• Alerts are sent when there is a power outage and when power returns.

Back-up Battery

• Rechargeable sealed lead-acid battery.
  • Battery removal/disposal instructions.
• Provides back-up for one hour.

Dimensions

• WxDxH (mm): 483x231x44

Environmental

• Operating temperature: 0°C to 38°C (32°F to 100°F).
• Storage temperature: -30°C to 60°C (-22°F to 140°F).
• Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals:

• CE, RoHS

Warranty

• Two years

Web Interface (view product demo)

• Full configuration via Web-page
• Support for Extended ASCII characters.
• Configure sensor thresholds and timing, alarm methods, alert formats and system data log.
• View current sensor values and alert status.
  • All sensors connected to the ENVIROMUX-SEMS can be viewed on one summary page.
  • “Simulate”/“Clear” buttons for each sensor to test alert settings.
• View entries stored in the system data log.
  • The log can be downloaded as a tab-delimited plain text file.
• Configure IP information (address, subnet mask, default gateway, DNS, etc.) and user administrative settings.
• Administrate up to 16 users plus a root administrator.

• Permissions, schedule and alert methods are configurable for each user.
• Up to 8 users can access the web page at one time.

RS232 Control

• Display and configure network settings (IP address, subnet mask, default gateway, DNS, SMTP, etc.), Enterprise settings, and time settings.
• View current values and alert statuses for sensors/digital inputs/IP devices.
• Configure SNMP
• Serial baud rate: 9,600 to 115,200bps.
• Data format: 1 start bit, 8 data bits, no parity, 1 stop bit.

Telnet

• Display and configure network settings (IP address, subnet mask, default gateway, DNS, SMTP, etc.), Enterprise settings, and time settings.
• View current values and alert statuses for sensors/digital inputs/IP devices.
• Configure SNMP
• Security is ensured by password.

Network Operation

• SNMP support, allowing integration into network management platforms.
• Updating the system firmware.

Front Panel Interface

• LEDs indicate the following:
  • "INT ALERT" (red) illuminates if an internal sensor exceeds a configurable threshold.
  • "EXT ALERT" (red) illuminates if an external sensor exceeds a configurable threshold.
  • "LOW BAT" (red) illuminates when the backup battery is low.
  • "CHECK LOG" (yellow) illuminates when a message is posted to the log.
  • "PWR" (green) illuminates when the device is powered.

Open Source Monitoring Integration

• Using Nagios
•  Using Multi Router Traffic Grapher (MRTG).

Optional Management Software

• Optional intuitive graphical software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000
  ENVIROMUX-SEMS-16 units and all connected sensors.

Download Firmware

• Download new firmware file and MIB files.
