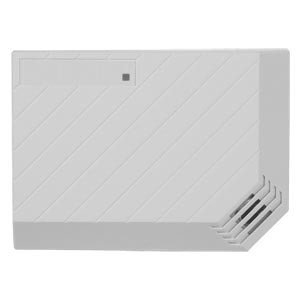

Glass Break Detection Sensor, Powered

NTI Part #: E-GBS-P

Qty:

Glass Break Detection Sensor. Acoustically detects the cracking of glass. Adjustable sensitivity. Includes 12V/1A country-specific power supply.

Acoustically detects the cracking of common framed glass types such as plate, tempered, wired and laminate.
Adjustable sensitivity and digital signal processing for greater detection sensitivity and improved false alarm immunity.
Includes mounting hardware for wall and ceiling.
Detection range: 25 feet.
- Reduced by drapes and/or blinds.
Connect to RJ45 (E-MINI-LXO only) or digital input sensor ports (E-MINI-LXO, E-MICRO, and E-1W).
Supports CAT5/5e/6 UTP or STP cables.
Screw terminal
- E-MINI-LXO: To connect to the RJ45 inputs, use CAT5/5e/6 cable terminated at one end with RJ45 connector. Connect the unterminated end to the sensor screw terminal.
- E-MINI-LXO, E-MICRO, E-1W: To connect to the digital inputs, use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
Maximum cable length: 1,000 ft (305 m)
Compatible with E-MINI-LXO, E-MICRO, and E-1W.
- E-1W only: compatible with the E-DI2-1W Digital Input Expander.
Includes 12V/1A power supply.
