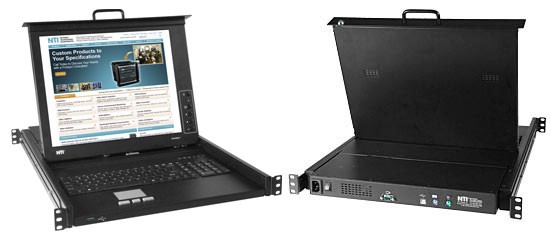

Rackmount VGA USB + PS/2 KVM Drawer

NTI Part #: RACKMUX-V15-Group

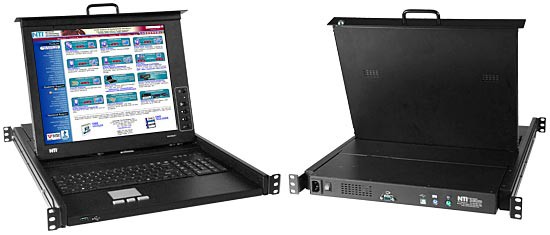

RACKMUX-V17-N (Front & Back)
RACKMUX-V17-N (Front & Back)
NTI Part #: RACKMUX-V15-Group
The RACKMUX® USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, touchpad mouse in a space-saving 1RU industrial strength drawer. It is available with a 15" (381 mm) or 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
Also known as: usb kvm drawer, rack mount PS/2 keyboard drawer, rack mount kvm drawer, USB console drawer, keyboard monitor touchpad mouse drawer, KVM drawers, keyboard LCD drawer, folding VGA monitor.
Single-Person Installation
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Rackmount VGA USB + PS/2 KVM Drawer
  • CE Compliant Rackmount VGA USB + PS/2 KVM Drawer
Scroll Down to Get Quote
The RACKMUX® VGA USB + PS/2 KVM Drawer combines a rackmount LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial strength drawer.
  • Available with 15" (381 mm) or 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
    • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°
    • Optional sunlight readable monitor available.
  • Optional 17" (432 mm) wide screen monitor available.
    • VGA USB + PS/2 KVM Drawer.
    • Numeric keypad.
  • Compatible with USB and PS/2 computers.
  • Torque-friction hinges-monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard.
    • Available with 17-key numeric keypad or large padded wrist-rest.
  • Rugged steel construction with durable powder coat finish.
  • Equipped with On Screen Display (OSD).
  • Designed to be a one-person job when installing the drawer.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
    • Front quick-release latches for pushing the drawer back into the rack.
  • LCD auto-shutoff in closed position
  • Internal cable arm provides proper cable management for sliding the drawer open and closed.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
  • Available with optional mounting bracket for two-post style telco rack.
Host Interface
  • Compatible with PS/2, UNIX and USB computers.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • One female 15-pin HD, one female USB Type B, and two female 6-pin min-DIN connectors.
  • Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.
Monitor
  • Forward-folding 15" (381 mm) or 17" (432 mm) Active Matrix LCD flat panel VGA monitor.
  • 1024x768 video resolution for 15" (381 mm) monitor.
  • 1280x1024 video resolution for 17" (432 mm) monitor.
  • 1440x900 video resolution for 17" (432 mm) wide screen monitor.
  • Tilt: up to 120°.
  • Sunlight readable monitor available (RACKMUX-V17-S, RACKMUX-V17-NS)
  • 17" (432 mm) wide screen monitor available (RACKMUX-V17-NW)
  • Frequency:
    • RACKMUX-V15(-N), RACKMUX-V17(-N):
      • Horzontal: 31 to 80 KHz
      • Vertical: 55 to 76 Hz.
      RACKMUX-V17-S, RACKMUX-V17-NS:
      • Horzontal: 53 to 79 KHz
      • Vertical: 50 to 75 Hz.
      RACKMUX-V17-NW:
      • Horzontal: 30 to 80 KHz
      • Vertical: 56 to 84 Hz.
  • Brightness:
    • RACKMUX-V15(-N): 250 nits
    • RACKMUX-V17(-N): 300 nits
    • RACKMUX-V17-S, RACKMUX-V17-NS: 500 nits indoors, 1100 nits outdoors
    • RACKMUX-V17-NW: 500 nits.
  • Contrast Ratio:
    • RACKMUX-V15(-N), RACKMUX-V17(-N): 500:1
    • RACKMUX-V17-S, RACKMUX-V17-NS: 800:1
    • RACKMUX-V17-NW:: 800:1
  • Supports DDC1 and DDC2B protocols.
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
Cables
  • 6-foot (1.8-meter) 15-pin HD VGA male to male cable included.
  • 6-foot (1.8-meter) USB Type A male to USB Type B male cable included.
  • 6-foot (1.8-meter) dual 6-pin miniDIN male to male keyboard/mouse cable included.
  • 6-foot (1.8-meter) power supply cable included.
Devices
  • Keyboard available in: English (US).
    • RACKMUX-V15/V17: 83-key keyboard with wrist-pad.
    • RACKMUX-V15/V17-N: 100-key keyboard with numeric keypad.
  • Three button touchpad mouse.
  • Front panel USB 1.1 port to connect external USB devices.
    • Female USB Type A connector.
    • KVM drawer must be connected to a USB-enabled computer.
MTBF
  • RACKMUX-V15: 41,704 hrs
  • RACKMUX-V15-N: 41,596 hrs
  • RACKMUX-V17: 40,923 hrs
  • RACKMUX-V17-N: 40,530 hrs
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Available power cord lengths: 1/1.5/3/6 feet
  • Power Consumption: 30 W
  • Maximum Inrush Current: 30A
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions
  • WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters)
    • Handle adds an additional 1.5" (38 mm) to the depth when monitor is in closed position.
  • Weight: 26 lbs. (12 kg)
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Application Drawings

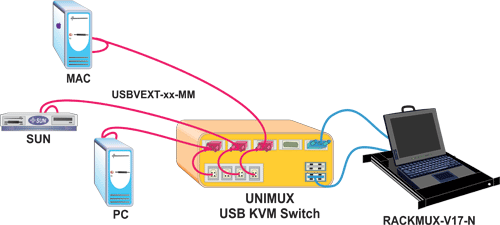

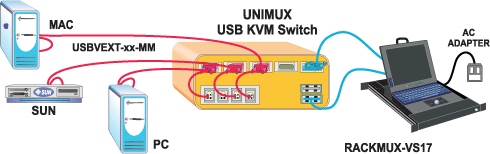

  • Rackmount VGA USB + PS/2 KVM Drawer
    Rackmount VGA USB + PS/2 KVM Drawer

CAD Drawings

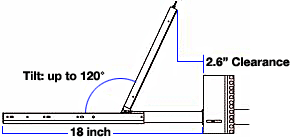

  • Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Loading image...

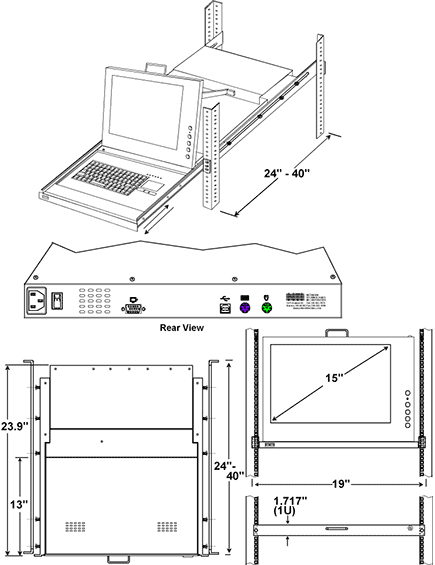

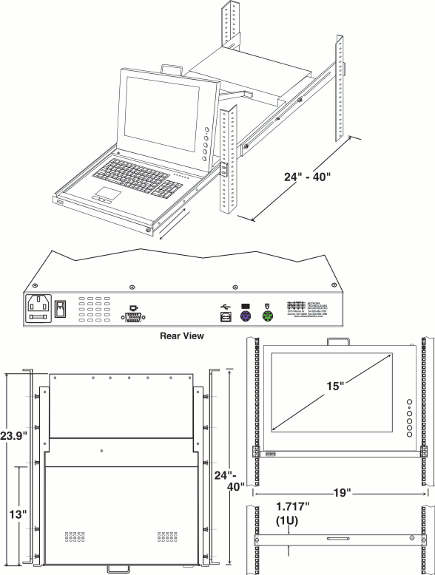

  • Rackmount USB + PS/2 KVM Drawer with 15" Monitor (RACKMUX-V15)
    Loading image...

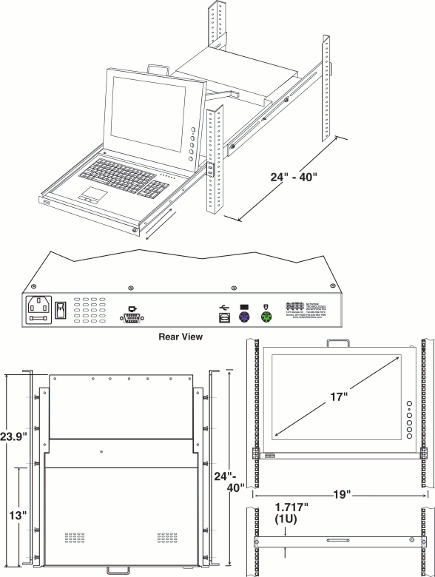

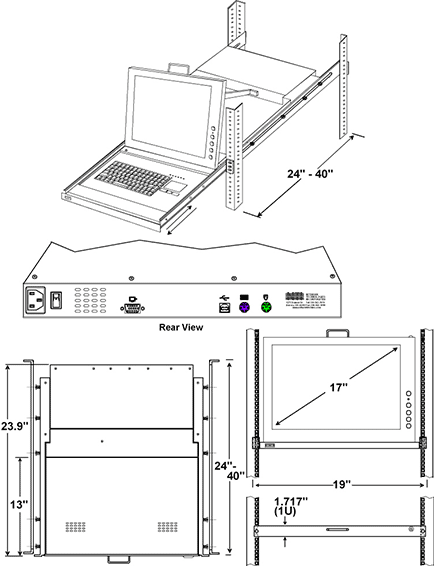

  • Rackmount USB + PS/2 KVM Drawer with 17" Monitor (RACKMUX-V17)
    Loading image...

Keyboard Layouts

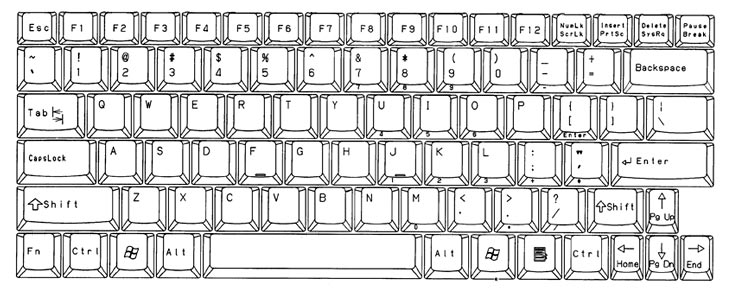

  • Rackmount KVM Drawer
    Loading image...
    RACKMUX-T15, RACKMUX-T15-G, RACKMUX-V15, RACKMUX-V17, RACKMUX-T15-CSx, RACKMUX-T15-G-CSx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V17-MP-PRIMUX, RACKMUX-V17-MP-xUNV, RACKMUX-V17-MP-2X8U, RACKMUX-V17-MP-nXmUHD, RACKMUX-D17

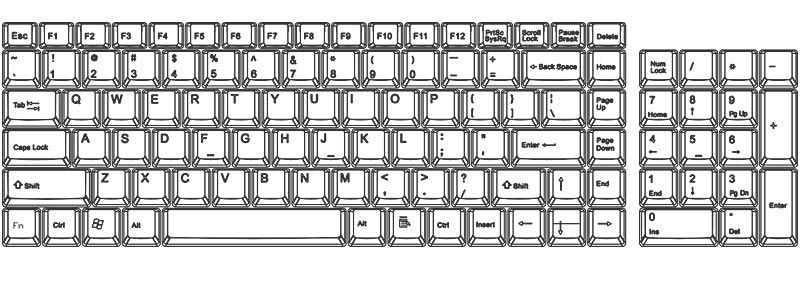

  • Rackmount KVM Drawer with Numeric Keypad
    Loading image...
    RACKMUX-T15-N, RACKMUX-T15-NG, RACKMUX-T15-N-CSx, RACKMUX-T15-NG-CSx, RACKMUX-T15-N-Sx, RACKMUX-V17-MP-xUSBHD, RACKMUX-V15-N-xUNV, RACKMUX-V17-N-xUNV, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-PRIMUX, RACKMUX-V15-N-nXmUHD, RACKMUX-V17-N-nXmUHD, RACKMUX-V15-N, RACKMUX-V17-N, RACKMUX-D17-N, RACKMUX-D15/17-N-xDVIHD
