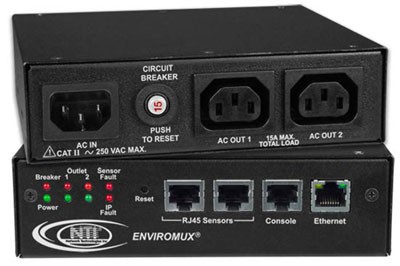

Secure Remote Power Control Unit with Environmental Monitoring

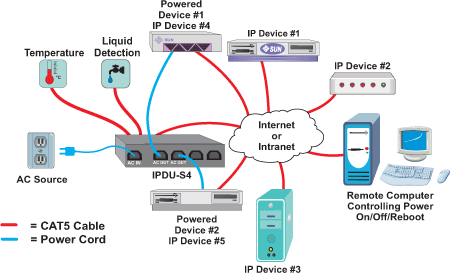

The ENVIROMUX® Secure Remote Power Control Unit allows you to remotely reboot and control power (on/off) to two servers or other powered devices from any location via secure web interface, RS232, SSH, or Telnet.

• Three operating modes for power reboot:
  • Manual – select the outlet and turn the power on/off.
  • Scheduled – set date/time/duration of power cycle.
  • Associated
    • Power on/off a device when a sensor goes out of range of a user-defined threshold.
    • Reboot (power cycle) and control power (on/off) to unresponsive IP devices that are connected to the IPDUs power outlets.
• Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.

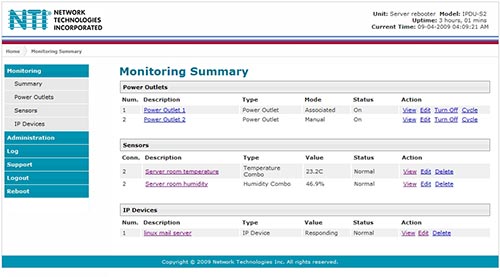

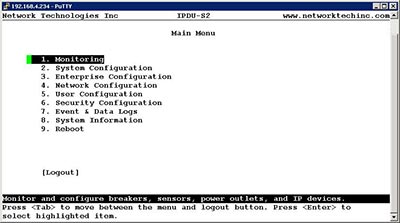

• Configure, control and monitor the unit via Web interface or Command Line Interface (CLI).

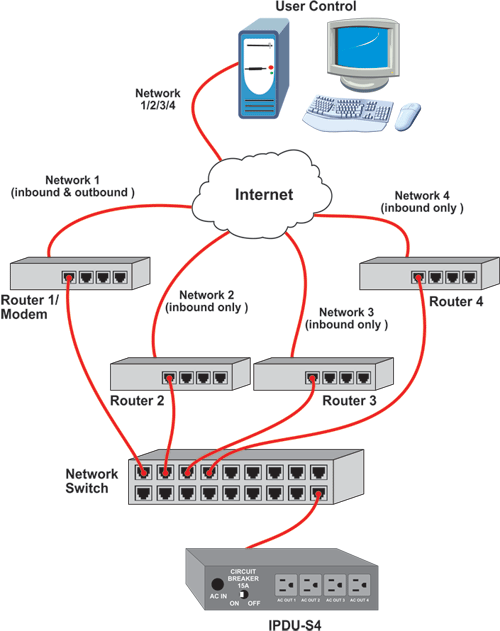

• Up to 3 additional IP aliases can be configured to allow remote control of the unit using different networks.
  • No scripts required - simply add the IP address, network mask, and gateway configurations through the web interface.
  • The first network (default network) will be used for total control of the unit, i.e. inbound and outbound connections.
  • The three other networks will allow web/SSH/telnet access only, i.e. inbound access only.
  • Up to four separate networks can be plugged into a network switch that is linked to the unit to facilitate the configuration.
• Supports two environmental sensors, including: temperature/humidity and water detection.
  • Shut down power when high temperature and other environmental threats are detected.
• Monitor (ping) up to eight IP network devices.
  • Unresponsive IP devices can be configured to trigger devices connected to the IPDUs power outlets to power on/off/reboot.
• Sends alert notifications via email, syslog, LEDs, Web page, and SNMP.
• Automatically configures network settings received from a connected DHCP server.
  • If a DHCP server is not found, the default static IP address will be used.
• Integrates with various Open Source monitoring packages - Nagios and MRTG.
  • The unit can be polled via SNMP.
• Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2
• Features Normally Open (NO) relay contacts.
