Single-Zone Liquid Detection System

NTI Part #: E-LDA-LC2-Group
The ENVIROMUX® Single-Zone Liquid Detection System monitors up to 1,640 feet (500 meters) of liquid/chemical detection sensor cable or an under carpet leak detection sensor. When the sensor detects a water or chemical leak, the system will notify you via a visual indicator (red LED) and an audible alarm.
  • Designed and Manufactured in the U.S.A.
  • ROHS Compliant Single-Zone Liquid Detection System
  • CE Compliant Single-Zone Liquid Detection System
Scroll Down to Get Quote

Overview

The ENVIROMUX® Single-Zone Liquid Detection System monitors up to 1,640 feet (500 meters) of liquid/chemical detection sensor cable or an under carpet leak detection sensor. When the sensor detects a water or chemical leak, the system will notify you via a visual indicator (red LED) and an audible alarm.

  • Monitor up to 1,640 feet (500 meters) of liquid/chemical detection sensor cable or an under carpet leak detection sensor.
  • Audible and visible alarm notifications.
    • Silence the audible alarm using the "mute" button.
  • Adjustable leak alarm sensitivity thresholds.
  • Use as a standalone monitoring device or integrate into a larger system via the relay outputs.
  • Configure for normally open or normally closed circuit connection.
  • DIN-rail mountable.

Specifications

Dry Contact Closures
  • One screw terminal pair for connecting a liquid/chemical detection sensor cable or an under carpet leak detection sensor.
    • Compatible sensors:
      • E-LD-LCx-y Low-Cost Liquid Detection Sensor Cable
      • E-LDx-y Liquid Detection Sensor Cable
      • E-CDx-y Chemical Detection Sensor Cable
      • E-UCLD-x Under Carpet Leak Detection Sensor
  • Potential-free.
Output Relay
  • One screw terminal pair.
  • Potential-free relay switch contacts.
  • Normally open / normally closed connection points.
  • Maximum switching load: 0.5A at 125VAC or 1A at 24VDC.
Serial Interface (Currently NOT Supported)
  • One screw terminal pair for RS485 two-wire network. (Currently NOT supported.)
Dimensions
  • WxDxH in: 1.41x4.19x2.44 (36x106x62 mm).
Power
  • One screw terminal pair.
  • Provides +12VDC, 100mA
  • Includes 12V, 1A power supply with country-specific line cord.
Environmental
  • Operating Temperature: -4 to 122°F (-20 to 50°C).
  • Storage Temperature: -40 to 140°F (-40 to 60°C).
  • Operating & Storage Relative Humidity: 5 to 95% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

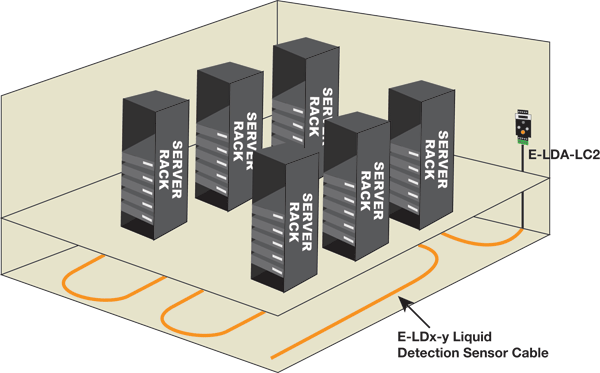

Application Drawings

  • Single-Zone Liquid Detection System
    Single-Zone Liquid Detection System
    How to monitor up to 1,640 feet of leak detection sensor cable – receive alert warnings when liquid is detected

(0)Mini Server Environment Monitoring Systems

NTI Part # Description Qty
E-LDA-LC2 Single-Zone Liquid Detection System

Related Items :

(0)Liquid & Chemical Detection Sensors

NTI Part # Description Qty
E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style. To order, select Length of Water Sensor Cable (x), and length of 2-Wire Cable (y). Configure
E-LDx-y-CONF Liquid Detection Sensor, Plenum Rope-Style. To order, select Length of Water Sensor Cable (x), and length of 2-Wire Cable (y). Configure
E-CDx-y Chemical Detection Sensor. To order, select Length of Chemical Sensor Cable (x), and length of 2-Wire Cable (y). Configure
E-UCLD-x Under Carpet Leak Detector. To order, select Configure to specify length of 2-wire cable. Configure
