Remote USB Range Extender CAT5 RJ45 Keyboard Mouse Printer USB Device Dual VGA Video Balun

Transparent USB Extender with VGA Video up to 200 Feet (46 Meters)

NTI Part #: ST-C5USBVT-Group

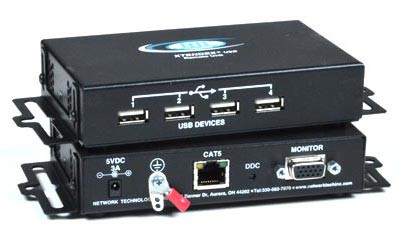

ST-C5USBVT (Remote Unit, Front and Back)
ST-C5USBVT (Remote Unit, Front and Back)
NTI Part #: ST-C5USBVT-Group
The USB Extender with VGA Video extends four USB devices and a VGA monitor up to 200 Feet (46 Meters). Each USB extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to four USB devices and a monitor. Supports resolutions to 2048x1536.
Also known as: CAT5 USB VGA extender, remote keyboard mouse monitor printer usb device, usb extension 150 feet long, kvm balun
Product Highlights
  • Supports remote USB flash drives
Available Options:
  • Dual Video
  • Dual Video + Two-way Audio + RS232
  • Designed and Manufactured in the U.S.A.
Scroll Down to Get Quote

The XTENDEX® Transparent VGA USB Extender extends four USB devices and a VGA monitor up to 200 feet. Each USB extender consists of a local unit that connects to a computer and also supplies video to a local monitor, and a remote unit that connects to four USB devices and a monitor.

  • Supports fully transparent USB connections — supports all USB computers (PC, SUN and MAC) and their associated peripherals.
  • Extend devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
    • Using CAT5e/6 cable, extend USB 1.1/1.0 devices to 180 feet and USB 2.0 devices to 150 feet.
    • Using CAT6a/7 cable, extend USB 1.1/1.0 devices to 200 feet and USB 2.0 devices to 180 feet.
  • Supports local and remote VGA monitors.
  • Supports resolutions to 2048x1536.
  • DDC2B support for local or remote monitor.
  • Compliant with USB 2.0 (low/full speed) standards.
  • Supports Plug-n-Play specification.
  • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
  • Available options: dual video, dual video + two-way audio (support for speakers and microphone) + RS232.
    • ST-C5USBVT: Transmits signals over one CATx cable.
      • Optional industrial USB extender with VGA video for high temperature environments. This industrial system has the ability to operate in harsh environments at high temperatures up to 158°F (70°C).
    • ST-C5USB2VT: Transmits signals over two CATx cables.
    • ST-C5USB2V2ARST: Transmits signals over two CATx cables.
  • Mounting brackets included for easy surface/wall mounting.
Local Unit
  • Host Connection
    • Supports USB computers (PC, SUN and MAC) with VGA video.
    • ST-C5USBVT(-IND): one male 15-pin HD and one female USB Type B connectors.
    • ST-C5USB2VT: two male 15-pin HD and one female USB Type B connectors.
    • ST-C5USB2V2ARST: two male 15-pin HD, one female USB Type B, two female 3.5 mm stereo, and one female RJ45 EIA-232 serial port connectors.
  • Local Access
    • Crisp and clear 2048x1536 video resolution.
    • ST-C5USBVT(-IND): one female 15-pin HD connector for local VGA monitor.
    • ST-C5USB2VT and ST-C5USB2V2ARST: two female 15-pin HD connectors for local dual VGA monitors.
Remote Unit
  • ST-C5USBVT(-IND): one female 15-pin HD and four female USB Type A connectors.
  • ST-C5USB2VT: two female 15-pin HD and four female USB Type A connectors.
  • ST-C5USB2V2ARST: two female 15-pin HD, four female USB Type A, two female 3.5 mm stereo, and one female RJ45 EIA-232 serial port connectors.
  • Provides support for full-speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
    • Compatible with USB touch screen monitors, including HP Compaq L2105tm and Elo 1515L.
  • Supports resolutions to 2048x1536.
  • Video quality adjustment for different lengths of CATx cable is done manually.
Cables
  • ST-C5USBVT(-IND): one 3.28-foot (1-meter) USB Type A male to USB Type B male, and one 3-foot (0.91-meter) 15-pin HD VGA male to male cables included.
  • ST-C5USB2VT: one 3.28-foot (1-meter) USB Type A male to USB Type B male, and two 3-foot (0.91-meter) 15-pin HD VGA male to male cables included.
  • ST-C5USB2V2ARST: one 3.28-foot (1-meter) USB Type A male to USB Type B male, two 3-foot (0.91-meter) 15-pin HD VGA male to male, two 3-foot (0.91-meter) 3.5mm audio, and one RJ45 EIA-232 serial cables included.
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Environmental
  • Operating temperature
    • ST-C5USB(2)V(2ARS)T: 32 to 122°F (0 to 50°C).
    • ST-C5USBVT-IND: 32 to 158°F (0 to 70°C)
  • Storage temperature
    • ST-C5USB(2)V(2ARS)T: -20 to 140°F (-30 to 60°C).
    • ST-C5USBVT-IND: -20 to 158°F (-30 to 70°C).
  • Operating and storage relative humidity: 0 to 90% non-condensing RH.
Dimensions WxDxH (in):
  • ST-C5USBVT(-IND): 5.14x3.07x1.09
  • ST-C5USB2VT: 5.14x3.07x1.69
  • ST-C5USB2V2ARST: 5.14x3.07x1.69
Power
  • ST-C5USBVT(-IND):
    • Local unit: powered from attached computer via USB.
    • Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK or AUS AC adapter included.)
  • ST-C5USB2VT and ST-C5USB2V2ARST:
    • Local/Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US, EURO, UK or AUS AC adapter included.)
  • The combined current consumption of the connected devices cannot exceed 1.4A

MTBF
NTI Part # MTBF (hrs)
ST-C5USBVT (local) 42,675
ST-C5USBVT (remote) 44,623
ST-C5USB2VT (local) 34,628
ST-C5USB2VT (remote) 42,135
ST-C5USB2V2ARST (local) 33,710
ST-C5USB2V2ARST (remote) 41,109
ST-C5USBVT-IND (local) 42,675
ST-C5USBVT-IND (remote) 44,623

Warranty
  • Two years
Compatible NTI products
  • Use NTI's USB adapters to connect non-USB devices to the extender.
Maximum Distances & Resolutions for CAT5e/6/6a/7 Cables
Cable Distance (ft) Maximum Resolution USB Device Type
CAT5e Solid UTP 180 2048x1536 at 60 Hz USB 1.1/1.0
150 2048x1536 at 60 Hz USB 2.0/1.1/1.0
CAT5e Solid STP 175 1920x1200 at 60 Hz USB 1.1/1.0
150 1920x1200 at 60 Hz USB 2.0/1.1/1.0
CAT5e Stranded, UTP or STP 175 1600x1200 at 60 Hz USB 1.1/1.0
150 1920x1200 at 60 Hz USB 2.0/1.1/1.0
100 2048x1536 at 60 Hz USB 2.0/1.1/1.0
CAT6 Solid UTP 150 1600x1200 at 60 Hz USB 2.0/1.1/1.0
100 1920x1440 at 60 Hz USB 2.0/1.1/1.0
CAT6 550 MHz Solid UTP 175 1920x1200 at 60 Hz USB 1.1/1.0
150 1920x1200 at 60 Hz USB 2.0/1.1/1.0
100 2048x1536 at 60 Hz USB 2.0/1.1/1.0
CAT6 Solid STP 150 1920x1200 at 60 Hz USB 2.0/1.1/1.0
100 2048x1536 at 60 Hz USB 2.0/1.1/1.0
CAT6 Stranded, UTP or STP 180 1920x1080 at 60 Hz USB 1.1/1.0
150 1920x1200 at 60 Hz USB 2.0/1.1/1.0
CAT6a Solid UTP 200 1920x1200 at 60 Hz USB 1.1/1.0
180 1920x1200 at 60 Hz USB 2.0/1.1/1.0
CAT7 Solid SSTP 200 2048x1536 at 60 Hz USB 1.1/1.0
180 2048x1536 at 60 Hz USB 2.0/1.1/1.0
CAT7 600 MHz Stranded STP 185 1920x1080 at 60 Hz USB 1.1/1.0
170 1920x1080 at 60 Hz USB 2.0/1.1/1.0
100 2048x1536 at 60 Hz USB 2.0/1.1/1.0

Application Notes

  • Transparent USB Extender with VGA Video
    Transparent USB Extender with VGA Video

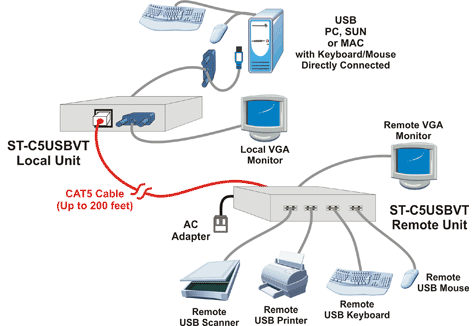

    How to connect a local and remote VGA monitor and USB devices using the ST-C5USBVT

CAD Drawings

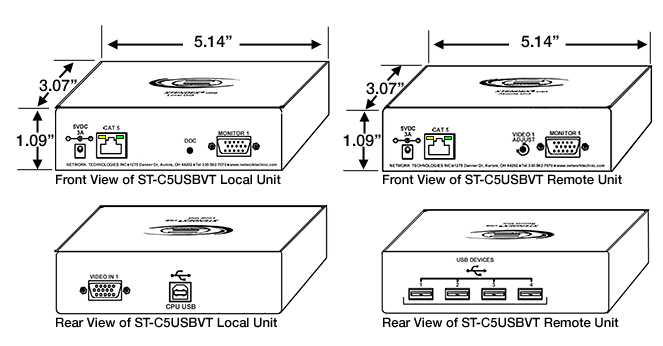

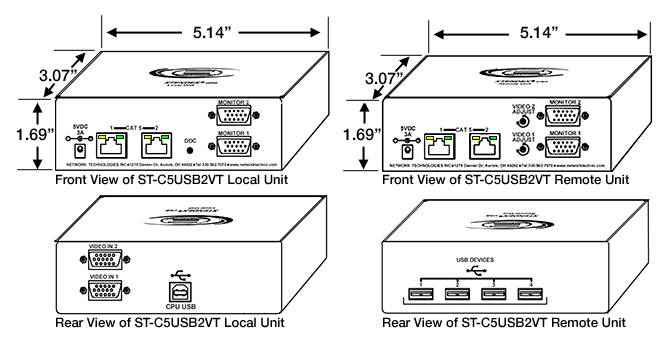

  • USB Extender with Dual VGA Video (ST-C5USB2VT)
    Loading image...

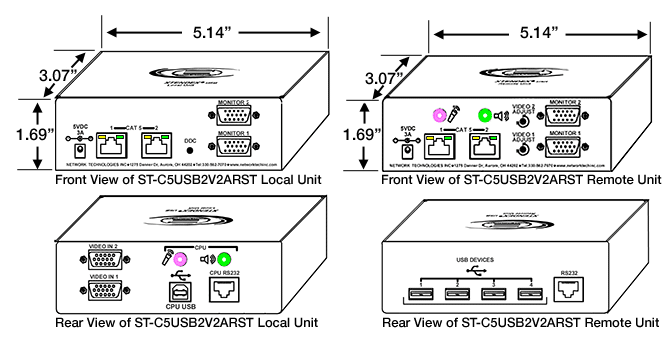

  • USB Extender with VGA Video (ST-C5USB2V2ARST)
    Loading image...
  • USB Extender with VGA Video (ST-C5USBVT)
    Loading image...
  • "The ST-C5USBVT KVM extender was the perfect solution for us to remove our computers from a dirty environment. We also like that we have the option to add additional USB devices."

    Jim Jorgenson
    Metro Water District
    Los Angeles, CA
  • "We are manufacturing a machine that has a touch screen monitor, keyboard, and mouse in a small operator interface enclosure. Then the computer will be located 50 feet away in the main control cabinet. I needed three USB devices and a monitor to go that 50'. Your ST-C5USBVT VGA USB extender fit the need, and is small enough that it fits in the operator enclosure. I've hooked it up and all works well."

    Craig Simon
    Pentair Inc
    Anoka, MN
  • "I am currently doing a major controls upgrade across our facility, and one of the issues has to do with a Scada upgrade that is not playing nice with our current USB extenders. I have not had time to track the issue, but have instead found the solution by using your new style ST-C5USBVT extender. I have to run a touchscreen, USB barcode reader, keyboard, and mouse as well as the VGA feed so these have been a perfect retrofit for my needs."

    Russell Wilson
    Corning Inc
    Wilmington NC
  • "Over the last 5 years we have spent more than I care to think about trying to get our application to work. We had been a loyal shop to one of your competitors for years, then we switched to another competitor. None of these companies could do what you did right out of the box with your ST-C5USB2V2ARST USB Extender."

    Joe Romstadt
    Beachcomers International Inc
    Ft Myers, FL
  • "A few months ago we purchased an ST-C5USBVT video USB extender from you. It works perfectly due to its ability to allow full USB transmission, which we need because we are using a touch screen on the remote monitor."

    Jason Steiner
    NorthWind Technical Services
    Sabetha, KS
