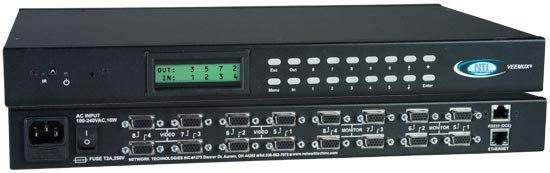

VGA video matrix switch, 8 in 8 out, Ethernet/RS232 control, rackmounted

Video Input

• Eight female 15-pin HD connectors.
• Impedance: 75 Ohms.

Video Output

• Eight female 15-pin HD connectors.
• 1920x1200 video resolution with no degradation.
• Impedance: 75 Ohms.
• Bandwidth: 200 Mhz, fully loaded.

Power

• 110 or 220 VAC at 50 or 60 Hz.
• Power consumption: 15 W
• Add -48V5V10A, optional internal DC-DC converter to install the SM-8X8-15V-LCD in a Telecom environment.

MTBF

• SM-8X8-15V-LCD: 60,588 hrs.

Cables

• Interface cables between the computers and the switch are required for proper operation.
• Recommended NTI video cables:
  • VGA interface cable (VEXT-xx-MM).
  • VGA to BNC cable (VINT).
• Cables not included.

Environmental

• Operating temperature: 32 to 100°F (0 to 38°C).
• Storage temperature: -20 to 140°F (-30 to 60°C).
• Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Regulatory Approvals

• CE, FCC, RoHS

Warranty

• Two years
