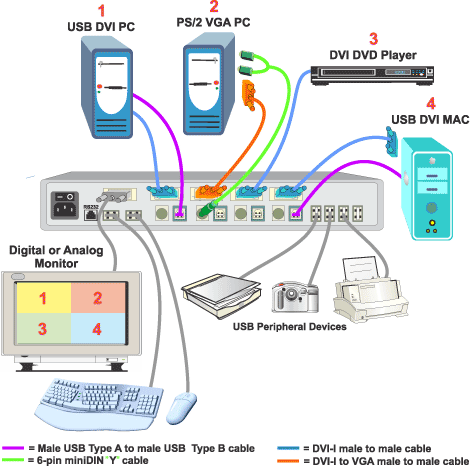

Hosts

• Female DVI-I single link connectors.
• Female USB Type B connectors.
• Female 6-pin miniDIN connectors.
• Supports USB and PS/2 computers.
• Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD and MAC OS 9/10.
• Supports digital DVI devices, such as DVD players, satellite receivers and HDTV tuners.
• Any VGA computer can be connected by using a DVI-I to VGA cable (included).

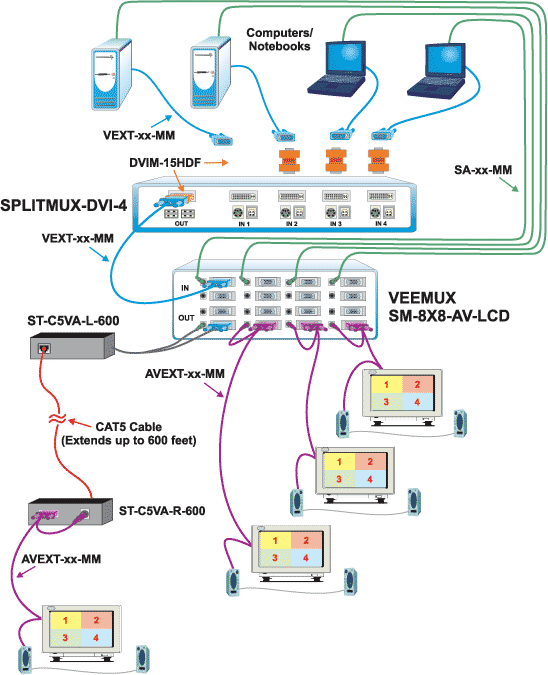

Monitor

• Supports crisp and clear VGA video resolution up to 1600x1200 and DVI video resolution up to 1900x1200.
• Female DVI-I connector.
• A VGA monitor can be connected by using a DVI-I to VGA cable (included).

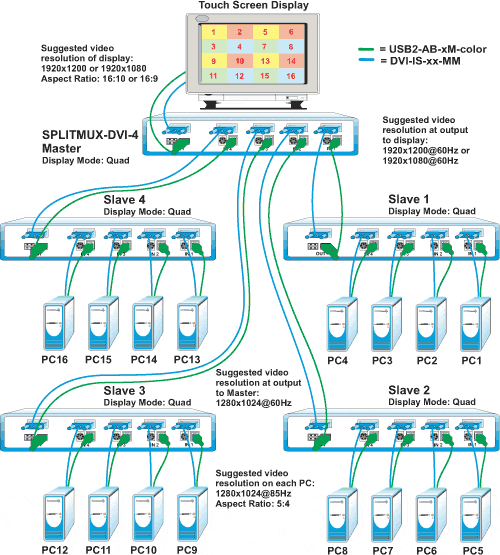

• Support for touch screens from the following manufacturers:
  • Elo AccuTouch 2116 Controller Series
    • Monitor models 1215L, 1229L, 1515L, 1522L, 1528L Medical, 1529L, 1537L, 1715L, 1729L, 1739L, 1915L, 1928L, 1928L Medical, 1939L, 2020L
  • TSharc Octopus Controller
    • Touch screens manufactured by 3M, Microtouch, Troll Touch, The Bergquist Company

Devices

• Female USB Type A connectors.
• Compatible with most USB keyboards and mice.
• Keyboard and mouse are hot-pluggable.
• Supports keyboard layouts in multiple languages: English, German, French, Italian, and Spanish.
• Connect legacy PS/2 devices by using a USB to PS/2 converter (included).

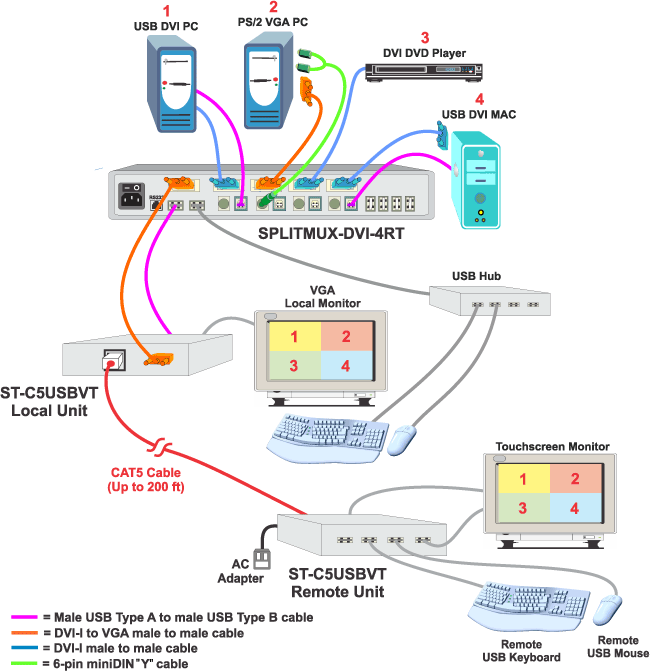

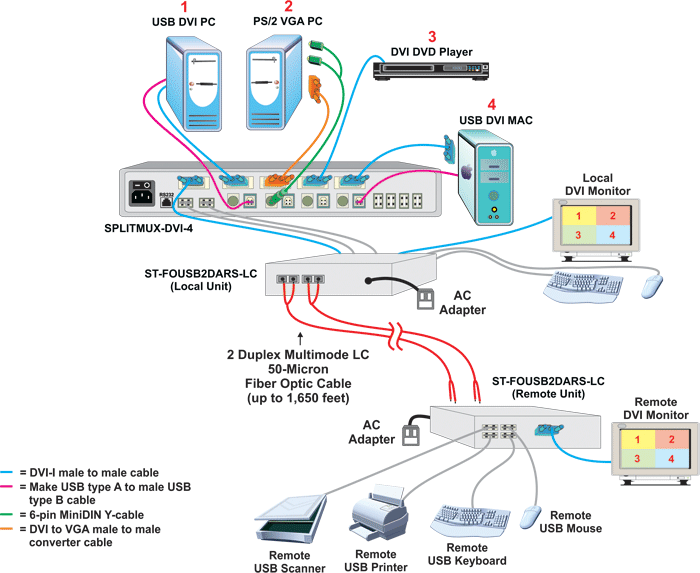

• Support for KVM over IP extenders to control the Quad Screen Splitter remotely in quad mode or PiP mode.

Power

• 110 or 220 VAC at 50 or 60 Hz via IEC connector.
• Power consumption: 40W

Dimensions

• WxDxH (mm): 438x241x44
• Weight: 2.9kg
• Rackmount kit included.

Regulatory Approval

• CE, FCC, RoHS

Package Includes

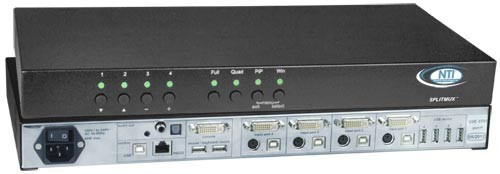

• SPLITMUX Quad Screen Splitter.
• Rack mount kit.
• Four 2-meter 6-pin miniDIN Y-cables.
• Four 2-meter USB male type A to male type B cables.
• Two 2-meter DVI-I male to male cable.
• Two 2-meter DVI-I to VGA male to male cable.
• USB to PS/2 converter
• Serial update cable.

Warranty

• Two years

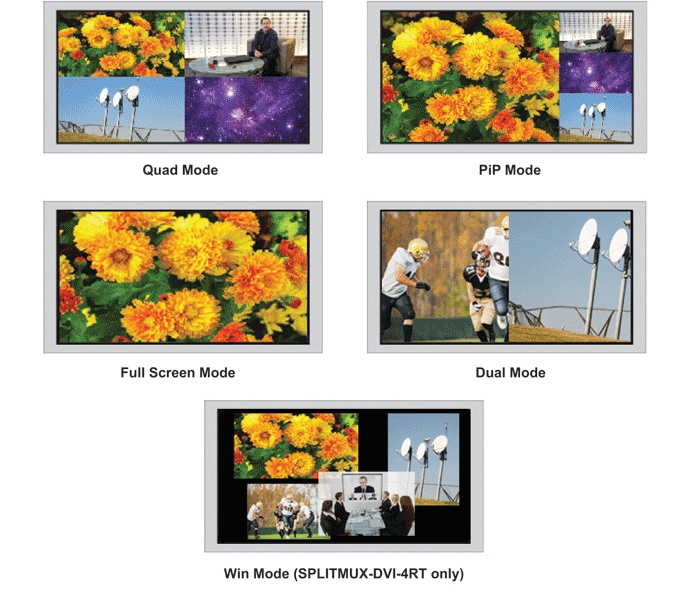

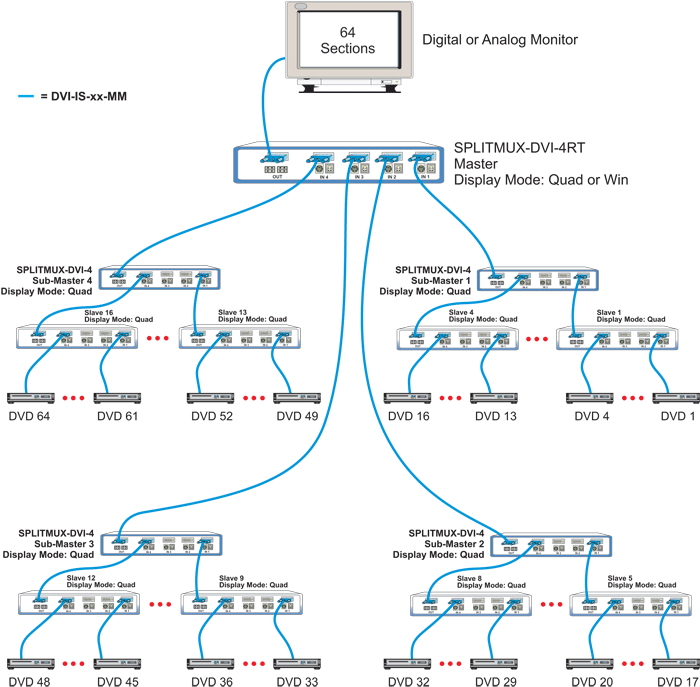

Quad Mode

• In quad mode, the screen is split into four fields of equal size each displaying the entire contents of four different video sources.

Full Screen Mode

• In full screen mode, one of the four computers' video sources is displayed in full screen size and maximum resolution.

Picture in Picture (PIP) Mode

• In PIP mode, the full screen display of one of the four video sources is accompanied by one or three small images (thumbnails) of the three other video sources on the right hand margin of the screen allowing simultaneous monitoring.
• Size, position and selection of the thumbnails are customizable.

Dual Mode

• In dual mode, the left halves of the full screen images from two video sources are displayed side by side at full size.

Fade Through Black

• When switching channels or display modes, the previous image fades out to black, and the next image fades in from black.
• Customizable with five speed settings, and can be enabled or disabled by the user.

Front Panel Interface

• Use front panel buttons to locally change ports or to select a display mode.
• LEDs indicate currently selected port and display mode.

Keyboard/Mouse

• Use hotkey commands or hotmouse commands to select display mode and to select ports.

On Screen Display (OSD)

• Select display modes and computers with On Screen Display (OSD).
• Use the front panel buttons or your keyboard to operate the OSD.
• OSD controls for hotkeys, OSD position, quad mode, PIP mode, brightness, contrast, phase, Horz- and Vert-center alignment adjustment.

RS232

• Control the unit with XML-based protocol via the RS232 port.

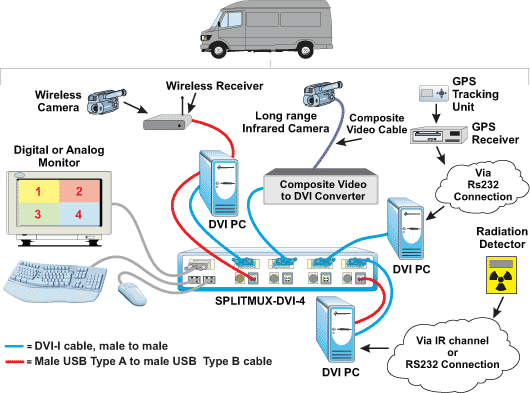

• Use to connect BNC/RCA composite video devices, such as security cameras, to the SPLITMUX-DVI-4
• Output Resolution: 800×600@60HZ, 800×600@75HZ, 1024×768@60HZ
• Video Inputs: one female BNC, one female S-Video, and one female VGA
  • Includes a male BNC to female RCA adapter for connecting RCA composite video devices.
• Video Output: one female VGA
• Supports NTSC/PAL
