DVI Matrix Switch, Video Router

DVI Routing Switch, DVI video switcher

DVI Video Matrix Switch

Switch single link DVI-D video from six sources to six displays.

Also known as: DVI router, video matrix switch, video router, routing switcher,
video switch, video port router, multiplexer, matrix switch, video switch, video matrices.

Data Sheet (PDF)

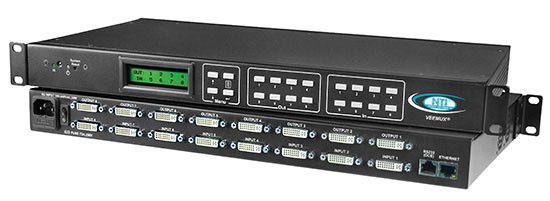

VEEMUX® SM-4X4-DVI (Front & Back)

Click to view
product image:

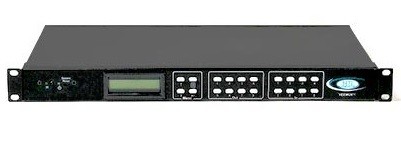

SM-8X8-DVI

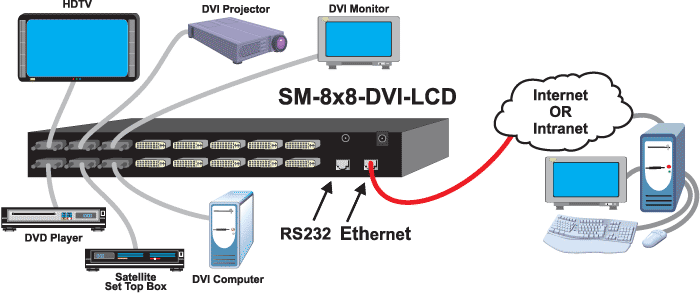

The VEEMUX® SM-nXm-DVI DVI video matrix switch routes video from up to eight single link digital DVI video sources (computers, DVD players, satellite receivers, etc.) to up to eight displays (LCD monitors, Plasma screens, DLP HDTVs, projectors, etc.).

Configure and control the switch through serial port, or front panel buttons.
Supports DVI-D interface for crisp and clear video quality on flat panel displays.

Silent fanless operation.
Provides high digital resolution up to 1920x1200 for monitors and 1080p for HDTV displays.
EDID learning for the support of any DVI display device.
Built in default EDID configuration tables for both PC and Mac.
Each output provides one video signal.
Each input can be independently connected to any or all outputs.

SM-4X4-DVI

SM-8X8-DVI

Video Input

Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with DVI-D outputs.
Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
Four female DVI-I single link connectors.

Video Output

Four female DVI-I single link connectors.
Supports 480i, 480p, 720i, 720p, 1080i and 1080p resolution for HDTV displays.
Supports up to 1920x1200 resolution for monitors.
Video bandwidth: 1.65 Gbps

Power

100 - 240 VAC at 50 or 60 Hz via AC Adapter.
Power consumption: 10W max.

Dimensions

WxDxH (mm): 305x165x44
Weight: 1.8 kg.

Warranty

Two years

Note: The SM-nXm-DVI DVI Video Matrix Switch does not support HDCP.

Matrix Control Software

Intuitive graphical software provides fast switch control using an RS232 connection.
Supports Microsoft Windows® 95/98/NT/ME/2000/XP/Vista.
Save and load feature allows frequently used matrix switch configurations
to be recalled with the click of a button.

Front Panel Interface

Configuration and control can be done using the front panel buttons.
Locally change input and output selections with front panel buttons.

RS232 Control

Configuration and control can be done through the serial port.
Female 9-pin D connector.
Baud rate: 9600.
